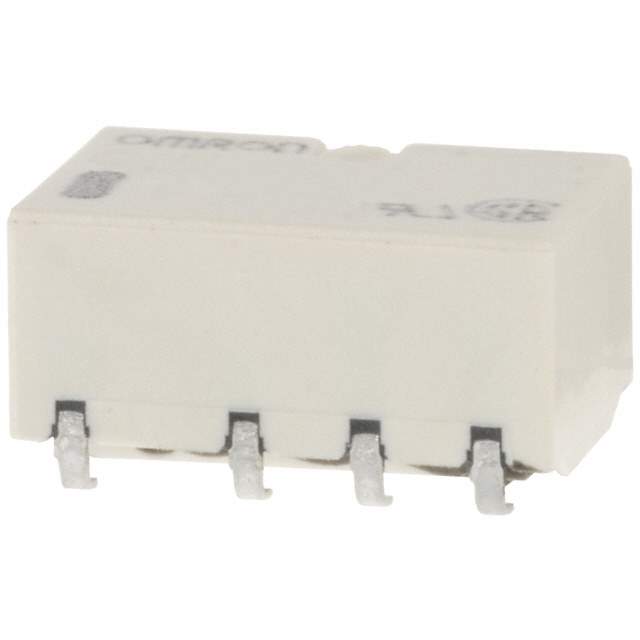

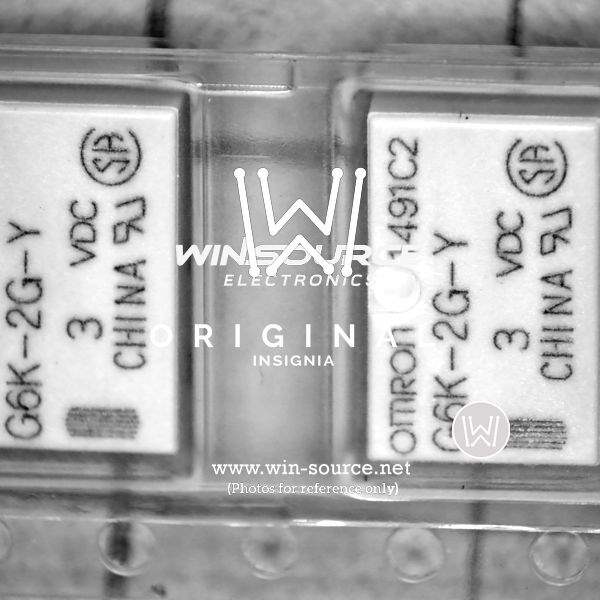

The G6K-2G-Y-TRDC3 is a miniature signal relay manufactured by Omron, designed for high-density mounting and low power consumption. This relay is part of the G6K series, known for its compact size, high sensitivity, and reliable performance in signal switching applications. The '2G' indicates it's a 2-pole relay, and the 'Y' signifies a sealed construction for enhanced environmental protection. TRDC3 indicates 3VDC coil voltage.

Applications:

• Telecommunications: Used in telecommunication equipment for signal routing and switching.
• Measurement Equipment: Employed in precision measurement instruments for signal isolation and control.
• Data Acquisition Systems: Used in data acquisition systems for signal conditioning and multiplexing.
• Security Systems: Found in security systems for alarm signal switching and control.
• Medical Equipment: Utilized in medical devices for signal isolation and switching where reliability is critical.

Features:

• Miniature Size: Compact design allows for high-density mounting on circuit boards.
• High Sensitivity: Low power consumption for efficient operation.
• Sealed Construction: Provides protection against dust, moisture, and other environmental contaminants.
• 2-Pole Configuration: Offers two independent switching circuits.
• Low Profile: Reduces overall height for space-constrained applications.
• High Reliability: Ensures consistent performance and long service life.

Benefits:

• Space Savings: Compact size allows for more components on a single circuit board.
• Energy Efficiency: Low power consumption reduces energy costs and heat generation.
• Environmental Protection: Sealed construction ensures reliable operation in harsh environments.
• Versatile Switching: 2-pole configuration allows for flexible circuit design.
• Long Service Life: High reliability ensures consistent performance over time.

Additional Details:

The G6K-2G-Y-TRDC3 relay operates with a coil voltage of 3VDC, making it suitable for low-voltage applications. Its contact rating is typically up to 1A at 30VDC or 0.5A at 125VAC, suitable for switching small signals. The relay's insulation resistance is high, ensuring minimal leakage current and reliable isolation between the coil and contacts. The operating temperature range is broad, allowing it to function in a variety of environments.

Omron's G6K series relays are known for their consistent performance and long operational life. The sealed construction of the G6K-2G-Y-TRDC3 provides added protection against environmental factors, making it a reliable choice for demanding applications where consistent performance is critical.
