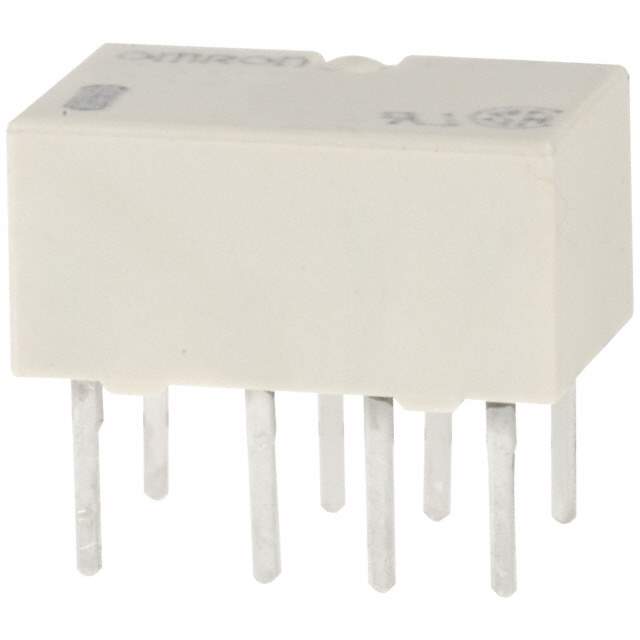

The Omron G6K-2P-Y-DC5 is a compact signal relay engineered for applications requiring high-density mounting and low power consumption. It is particularly suitable for telecommunications, test and measurement equipment, and security systems.

Applications

• Telecommunications equipment: Used for signal routing, line switching, and modem applications.
• Test and measurement equipment: Integrated into testers, data acquisition systems, and analyzers.
• Security systems: Employed in alarm panels, access control systems, and sensor interfaces.
• Medical equipment: Used in diagnostic devices and patient monitoring systems.
• Industrial control: Utilized in programmable logic controllers (PLCs) and automation systems.

Features

• Compact size: Enables high-density mounting on printed circuit boards.
• Low power consumption: Reduces energy usage and heat generation.
• High sensitivity: Allows for reliable switching with low input power.
• Surface mount design: Compatible with automated assembly processes.
• Double pole double throw (DPDT) contact configuration: Offers versatile switching capabilities.

Benefits

• Board space optimization: The small footprint allows for more components on the PCB.
• Energy cost savings: Reduced power consumption minimizes operating costs.
• Reliable performance: Ensures consistent switching in demanding applications.
• Simplified assembly: Compatible with automated manufacturing processes.
• Versatile switching: DPDT configuration provides flexibility in circuit design.

Additional Details

The G6K-2P-Y-DC5 operates with a coil voltage of 5VDC. This relay uses a bifurcated contact, providing highly reliable switching. It is designed for reflow soldering processes. It is manufactured with materials that minimize outgassing. This signal relay is designed for long life, with mechanical life up to 100 million operations.
