Same model may have multiple batches, images only for reference.

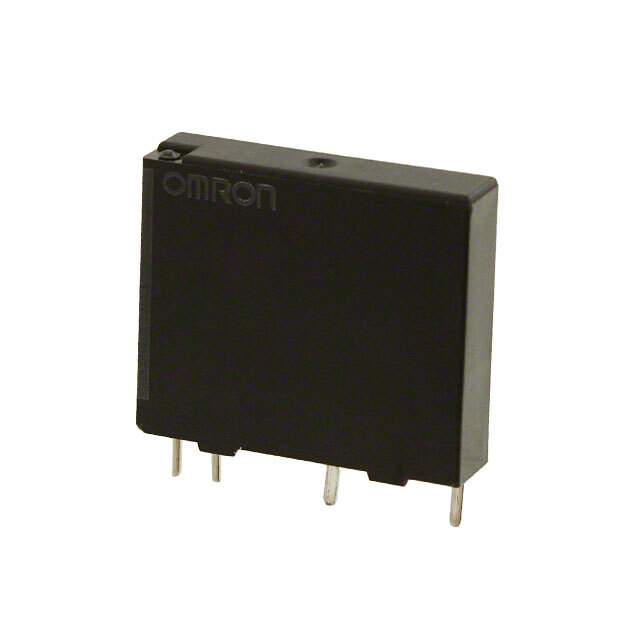

G6M-1A DC24 Real Image
Same model may have multiple batches, images only for reference.

G6M-1A DC24

Part No G6M-1A DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Datasheet
G6M-1A DC24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G6M
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 3 A
Switching Voltage 270VAC, 125VDC - Max
Coil Current 5 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Relay Type General Purpose
Coil Resistance 4.8 kOhms
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1315320-G6M-1A DC24
Ultra Librarian 3D Model Ultra Librarian G6M-1A DC24 CAD Model

Description

The Omron Electronics Inc-EMC Div G6M-1A DC24 is a general purpose relay with a SPST-NO (1 Form A) contact form.

  • Win Source Part Number: 1315320-G6M-1A DC24
  • Contact Form: SPST-NO (1 Form A)
  • Mounting Type: Through Hole
  • Temperature Range - Operating: -40°C ~ 85°C
  • Seal: Sealed - Fully
  • Coil Voltage: 24VDC
  • Contact Rating (Current): 3A
  • Switching Voltage: 270VAC, 125VDC - Max
  • Product Status: Obsolete
  • Must Operate Voltage: 16.8 VDC
  • Must Release Voltage: 2.4 VDC
