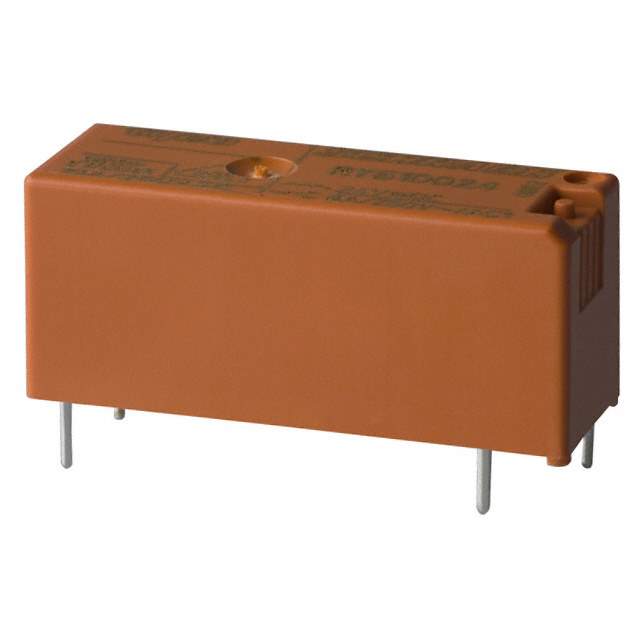

2-1393224-8 Real Image
Same model may have multiple batches, images only for reference.

2-1393224-8

Part No 2-1393224-8
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 8A 24V / General Purpose Relay SPST-NC (1 Form B) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series RY, SCHRACK
Package Bulk
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NC (1 Form B)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Coil Current 10.2 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 9 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 2.35 kOhms
Base Product Number 1393224
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Other Names -2-1393224-8-LSI,-2-1393224-8-SI,RYA51024
Standard Package 500
Win Source Part Number 1012242-2-1393224-8
Ultra Librarian 3D Model Ultra Librarian 2-1393224-8 CAD Model

Description

The RY series relay from TE Connectivity Potter & Brumfield Relays is a general-purpose power relay with an SPST-NC contact form.

  • Contact Form: SPST-NC
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.35 kOhms
  • Contact Rating: 8A
  • Switching Voltage: Up to 400VAC
  • Mounting Style: Through-Hole
  • Operating Temperature: -40°C to 70°C
