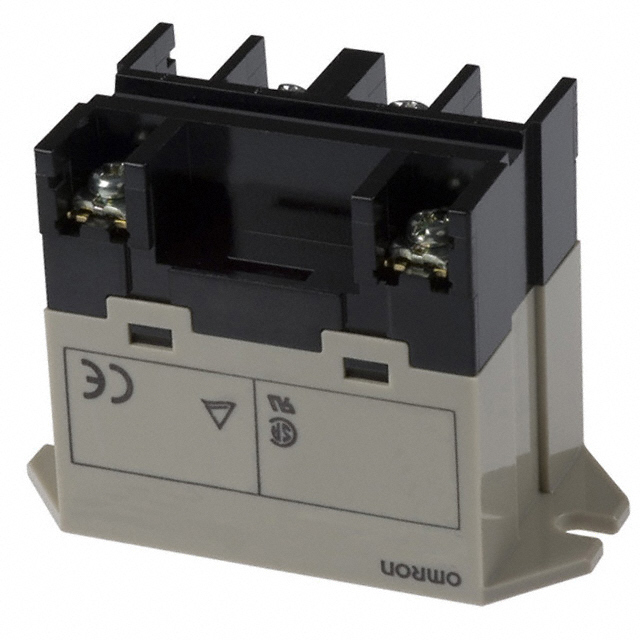

G7L-1A-B DC100 Omron – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

G7L-1A-B DC100

Part No G7L-1A-B DC100
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 30A 100V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Chassis Mount
Coil Voltage 100VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30 A
Switching Voltage 250VAC - Max
Load - Max Switching 7500VA
Coil Current 19 mA
Coil Type Non Latching
Termination Style Screw Terminal
Must Operate Voltage 75 VDC
Must Release Voltage 15 VDC
Operate Time 30 ms
Release Time 30 ms
Temperature Range - Operating -25°C ~ 60°C
Contact Material Silver Alloy
Approval Agency CSA, TUV, UR
Relay Type General Purpose
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1549060-G7L-1A-B DC100
Ultra Librarian 3D Model Ultra Librarian G7L-1A-B DC100 CAD Model
