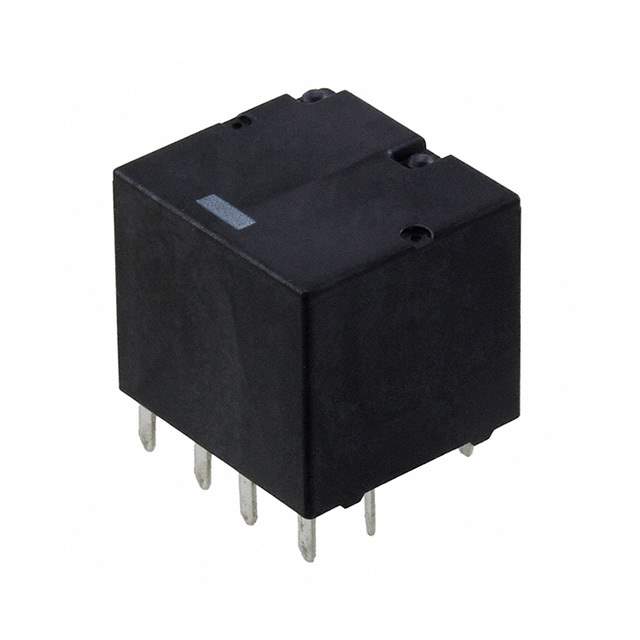

The G8NW-2L-ASDC12 1 is a compact automotive relay manufactured by Omron. It is designed for switching various electrical loads in automotive applications, such as lighting, power windows, door locks, and other auxiliary systems. This relay is known for its high reliability, robust construction, and ability to withstand harsh automotive environments.

Applications

• Automotive Lighting: Switching headlights, taillights, and fog lights.
• Power Windows and Door Locks: Controlling power window motors and door lock actuators.
• Windshield Wipers: Switching windshield wiper motors.
• Horn Control: Activating the vehicle's horn.
• Starting Systems: Controlling the starter motor circuit (in some applications).

Features

• Compact Size: Allows for installation in space-constrained automotive environments.
• High Switching Capacity: Handles significant electrical loads.
• Robust Construction: Withstands vibration, shock, and temperature extremes.
• Long Life Expectancy: Provides reliable performance over an extended period.
• Sealed Construction: Offers protection against dust, moisture, and other contaminants.

Benefits

• Reliable Switching: Ensures consistent and dependable performance in automotive systems.
• Extended Equipment Lifespan: Protects downstream components from damage due to voltage spikes or current surges.
• Improved Vehicle Safety: Contributes to the safe and reliable operation of automotive systems.
• Reduced Maintenance Costs: Minimizes the need for frequent replacements due to relay failure.
• Easy Installation: Standard terminal configurations simplify installation and wiring.

Additional Details

The G8NW-2L-ASDC12 1 features a 12VDC coil voltage. Refer to the manufacturer's datasheet for detailed specifications, including contact ratings, operating temperature range, and mechanical life expectancy. Proper wiring and protection circuits are essential for optimal relay performance. This relay is designed to meet automotive industry standards for reliability and performance.
