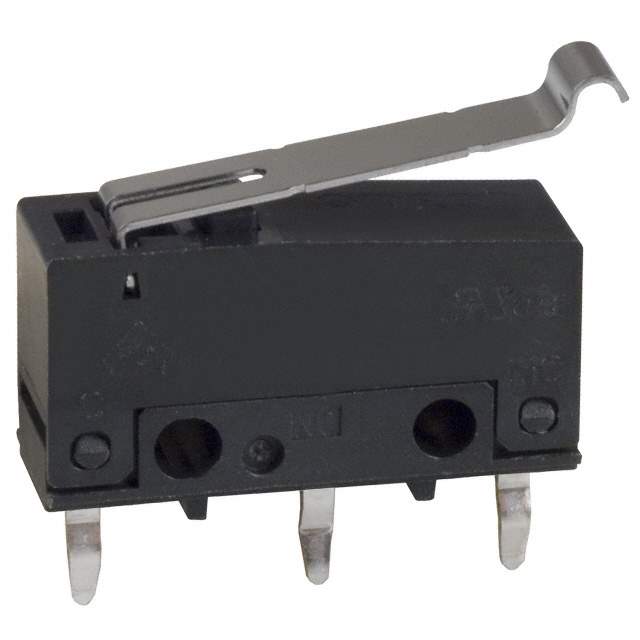

SS-01GL13PD Real Image
Same model may have multiple batches, images only for reference.

SS-01GL13PD

Part No SS-01GL13PD
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Through Hole
Datasheet
SS-01GL13PD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS-P
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 51gf
Release Force 5.099gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.039" (1.0mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.420" (10.7mm)
Electrical Life 200,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number SS-01GL
Other Names SW783,SS01GL13PD,SS-01GL13PD BY OMZ,SS01GL13PDBYOMZ,2266-SS-01GL13PD
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233421-SS-01GL13PD
Ultra Librarian 3D Model Ultra Librarian SS-01GL13PD CAD Model

Description

The Omron 1233421-SS-01GL13PD is a limit switch with a unique specification that is provided by the manufacturer.

  • Win Source Part Number: 1233421-SS-01GL13PD
  • Category: Switches
  • Series: SS-P
  • Termination Style: PC Pin
  • Ingress Protection: IP40
  • Voltage Rating AC: 125V
  • Voltage Rating DC: 30V
  • Package: Tray
  • Standard Package: 500
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever or Simulated Roller
  • Electrical Life: 200,000 cycles
  • Operating Force: 51gf
  • Mechanical Life: 1,000,000 cycles
  • Release Force: 5.099gf
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.039" (1.0mm)
  • Operating Position: 0.420" (10.7mm)
  • Mounting Type: Through Hole
  • Temperature Range: -25°C to 85°C
