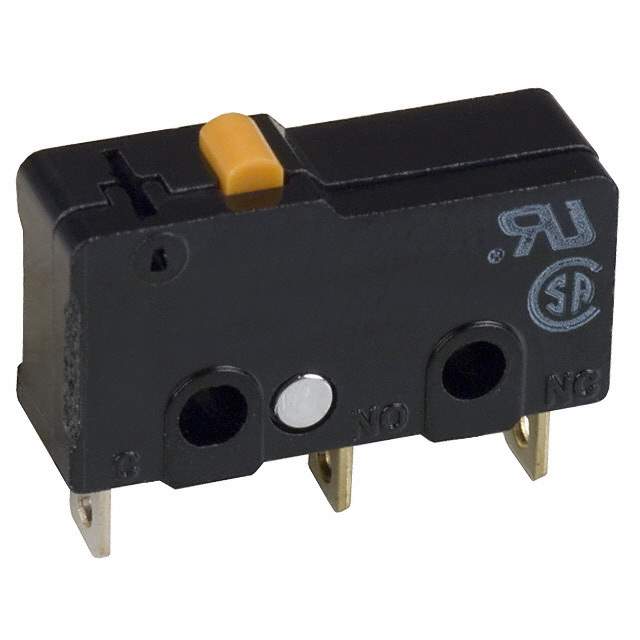

SS-01GL14-F Real Image
Same model may have multiple batches, images only for reference.

SS-01GL14-F

Part No SS-01GL14-F
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V  /  Switch SPDT Chassis Mount
Datasheet
SS-01GL14-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Formed
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 16gf
Release Force 2.039gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.398" (10.1mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01GL
Other Names SS01GL14F
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233488-SS-01GL14-F
Ultra Librarian 3D Model Ultra Librarian SS-01GL14-F CAD Model

Description

The Omron Electronics Inc-EMC Div SS-01GL14-F is a highly reliable and efficient electronic component designed for various applications.

  • Series: SS
  • Termination Style: Solder Lug
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Manufacturer: Omron Electronics Inc-EMC Div
  • Win Source Part Number: 1233488-SS-01GL14-F
