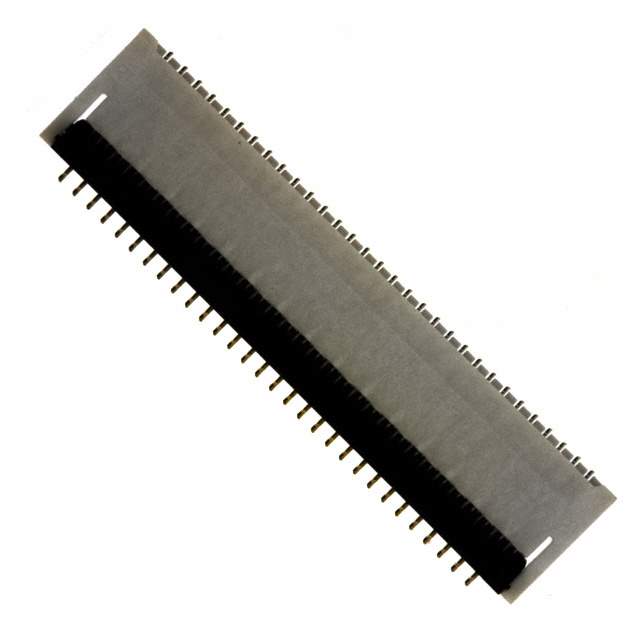

Same model may have multiple batches, images only for reference.

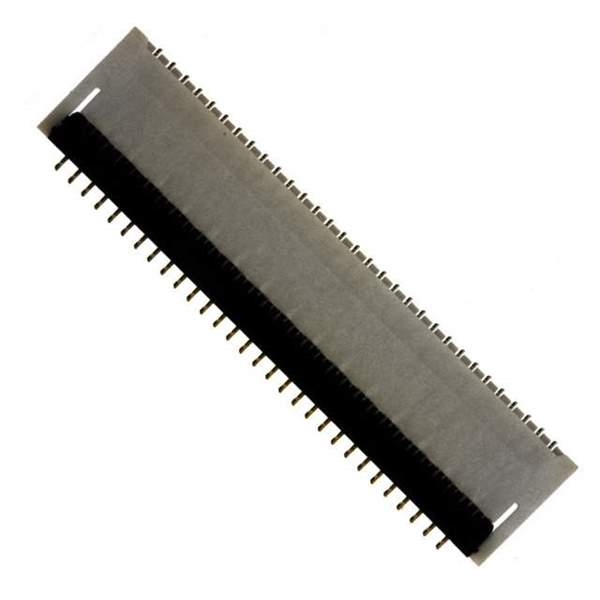

XF2B-6155-31A Real Image
Same model may have multiple batches, images only for reference.

XF2B-6155-31A

Part No XF2B-6155-31A
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC TOP 61POS 0.3MM R/A / 61 Position FPC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Omron Electronics Inc-EMC Div
Series XF2B
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 61
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.083" (2.10mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Straight
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP) , Halogen Free
Actuator Material Liquid Crystal Polymer (LCP) , Halogen Free
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A
Contact Finish Thickness 5.90µin (0.150µm)
Housing Color Natural
Actuator Color Black
Mating Cycles 20
Standard Package 1,500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1351973-XF2B-6155-31A
Ultra Librarian 3D Model Ultra Librarian XF2B-6155-31A CAD Model

Description

The XF2B series FFC, FPC (Flat Flexible) connector assembly is a top contact type connector with 61 positions and a pitch of 0.012" (0.30mm).

  • Positions: 61
  • Pitch: 0.012" (0.30mm)
  • Contact Type: Top Contact
  • Locking Feature: Rotary Lock and Backlock
  • Cable End Type: Straight
  • Contact Finish: Gold
  • Finish Thickness: 5.90μin (0.150μm)
  • Contact Material: Copper Alloy
  • Flat Flex Type: FPC
  • FFC, FCB Thickness: 0.20mm
  • Housing and Actuator Material: Liquid Crystal Polymer (LCP), Halogen Free
  • Housing Color: Natural
  • Voltage Rating: 50V
  • Height Above Board: 0.083" (2.10mm)
  • Mounting Type: Surface Mount, Right Angle
  • Temperature Range: -30°C to 85°C
  • ECCN: EAR99
  • Standard Package: 1,500 Units
  • Popularity: Medium
  • Status: Obsolete
