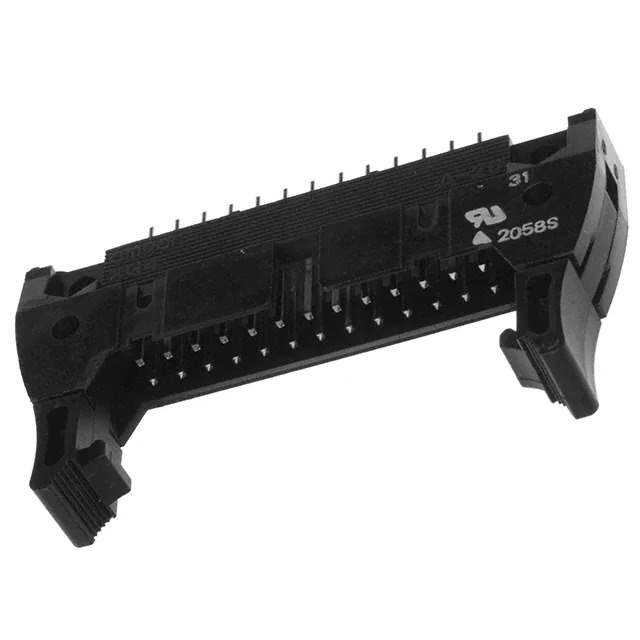

XG4A-2631

Name: XG4A-2631
Brand: Omron
SKU: 848900
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	XG4A-2631
Manufacturer	Omron
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 26POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Omron
Series	XG4
Package	Tray
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	26
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Long
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.126" (3.20mm)
Overall Contact Length	0.657" (16.70mm)
Insulation Height	0.669" (17.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	5.90µin (0.150µm)
Contact Finish - Post	Tin
Contact Material	Brass, Nickel
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Keying Slot, Mounting Flange
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	300V
Mated Stacking Heights	23.5mm
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	XG4A
Standard Package	60 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	848900-XG4A-2631
Ultra Librarian 3D Model	Ultra Librarian XG4A-2631 CAD Model

Alternative Products

Description

The XG4A-2631 is a 26-position male pin header connector from Omron.

Series: XG4
Connector Type: Rectangular, Board to Cable/Wire
Features: Keying Slot, Mounting Flange
Contact Material: Brass
Contact Finish: Nickel
Voltage Rating: 300V
Current Rating: 3A
Mated Stacking Height: 23.5mm
Overall Contact Length: 16.70mm
Packaging: Tray
Pieces per Package: 60
