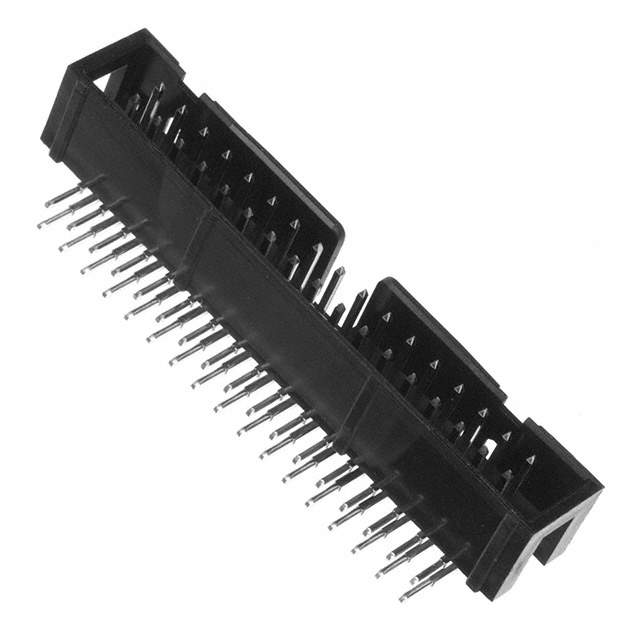

XG4C-3434 Real Image
Same model may have multiple batches, images only for reference.

XG4C-3434

Part No XG4C-3434
Manufacturer Omron
Catalog Rectangular Connectors
Description CONN HEADER R/A 34POS 2.54MM / Connector Header Through Hole, Right Angle 34 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Omron Electronics Inc-EMC Div
Series XG4
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 34
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.323" (8.20mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 5.90µin (0.150µm)
Contact Finish - Post Tin
Contact Material Brass, Nickel
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 300V
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number XG4C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names XG4C3434-ND,XG4C-3434 BY OMZ,XG4C3434,XG4C3434BYOMZ,OR903,2266-XG4C-3434
Standard Package 60
Win Source Part Number 987497-XG4C-3434
Ultra Librarian 3D Model Ultra Librarian XG4C-3434 CAD Model

Description

The Omron XG4C-3434 is a rectangular connector header with male pins.

  • Manufacturer: Omron
  • Series: XG4
  • Positions: 34
  • Keying Slot: Yes
  • Application: Board to Board or Cable
  • Contact Type: Male Pin
  • Loaded Positions: All
  • Rows: Two
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Package: Tray
  • Contact Material: Brass
  • Contact Plating: Nickel
  • Voltage Rating: 300V
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass-Filled
  • Insulation Color: Black
  • Style: Shrouded - 4 Wall
  • Row Spacing - Mating: 0.100" (2.54mm)
  • Contact Length - Post: 0.126" (3.20mm)
  • Operating Temperature: -55°C to 105°C
  • HTSUS: 8536.69.4040
  • Other Names: XG4C3434-ND, XG4C-3434 BY OMZ, XG4C3434, XG4C3434BYOMZ, OR903, 2266-XG4C-3434
