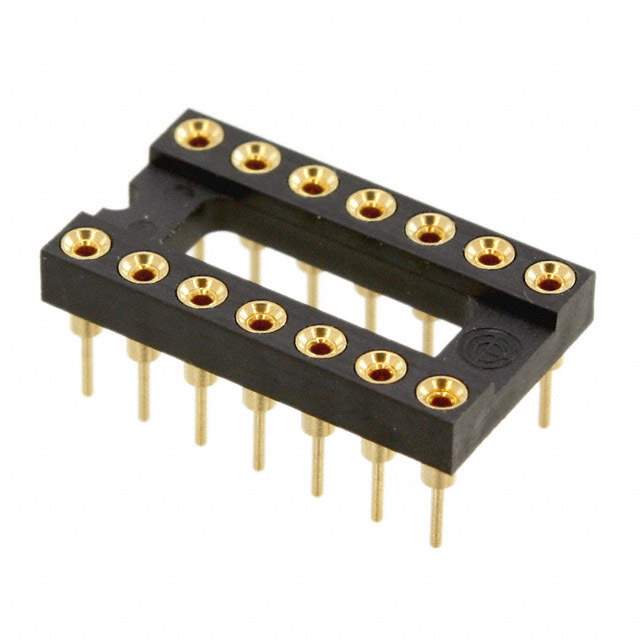

XR2A-1401-N Real Image
Same model may have multiple batches, images only for reference.

XR2A-1401-N

Part No XR2A-1401-N
Manufacturer Omron
Catalog Sockets for ICs, Transistors
Description CONN IC DIP SOCKET 14POS GOLD  /  14 (2 x 7) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Sockets for ICs, Transistors
Mfr Omron Electronics Inc-EMC Div
Series XR2
Package Bulk
Type DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) 14 (2 x 7)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 29.5µin (0.75µm)
Contact Material - Mating Beryllium Copper
Mounting Type Through Hole
Features Open Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Gold
Contact Finish Thickness - Post 29.5µin (0.75µm)
Contact Material - Post Beryllium Copper
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -55°C ~ 125°C
Termination Post Length 0.126" (3.20mm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1 A
Contact Resistance 20mOhm
Base Product Number XR2A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names XR2A1401NNC,XR2A1401N,XR2A-1401-N-ND,OR1085,2266-XR2A-1401-N
Standard Package 34
Win Source Part Number 1215094-XR2A-1401-N
Ultra Librarian 3D Model Ultra Librarian XR2A-1401-N CAD Model

Description

The Omron Electronics Inc-EMC Div XR2A-1401-N is a socket for ICs and transistors with a 14 (2 x 7) number of positions or pins (grid).

  • Pitch: 0.100” (2.54mm)
  • Termination: Solder
  • Mounting Type: Through Hole
  • Package: Bulk
  • Current Rating: 1A
  • Contact Resistance: 20mOhm
  • Operating Temperature Range: -55℃ to 125℃
  • Housing Material: Polybutylene Terephthalate (PBT), Glass Filled
