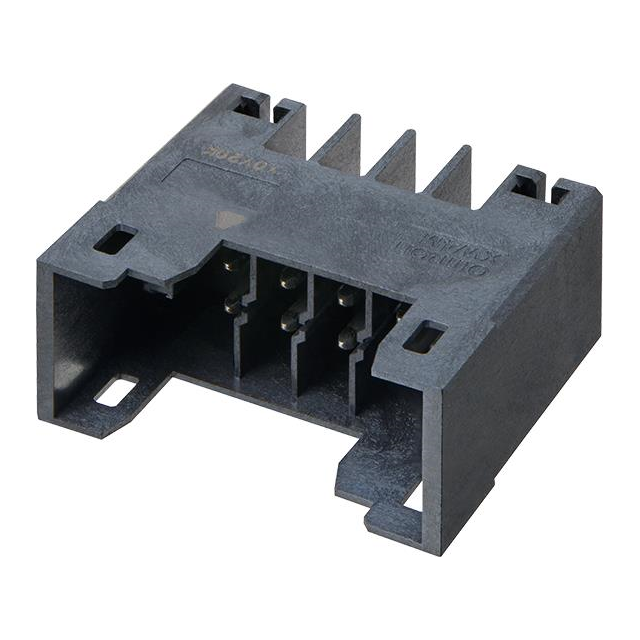

XW4M-32D2-H1DS Real Image
Same model may have multiple batches, images only for reference.

XW4M-32D2-H1DS

Part No XW4M-32D2-H1DS
Manufacturer Omron
Catalog Terminal Blocks
Description PLUG,DOUBLE-ROW,RIGHT-ANGLE,TIN  /  32 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Headers, Plugs and Sockets
Mfr Omron Electronics Inc-EMC Div
Series XW4M
Package Tray
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 32
Positions Per Level 16
Number of Levels 2
Pitch 0.138" (3.50mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Type Through Hole
Current - IEC 8A
Voltage - IEC 160 V
Current - UL 8 A
Voltage - UL 300 V
Color Black
Temperature Range - Operating -40°C ~ 100°C
Contact Mating Finish Tin
Features Latches
Material Flammability Rating UL94 V-0
Contact Material Copper Alloy
Housing Material Liquid Crystal Polymer (LCP)
Contact Tail Length 0.130" (3.30mm)
Insulation Height 0.421" (10.70mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 39-XW4M-32D2-H1DS,XW4M32D2H1DS
Standard Package 20
Win Source Part Number 1105892-XW4M-32D2-H1DS
Ultra Librarian 3D Model Ultra Librarian XW4M-32D2-H1DS CAD Model

Description

The XW4M-32D2-H1DS is a connector terminal block header manufactured by Omron Electronics Inc-EMC Div.

  • Type: Male Pins, Shrouded (4 Side)
  • Orientation: 90° Right Angle
  • Number of Positions: 32
  • Positions Per Level: 16
  • Number of Levels: 2
  • Pitch: 0.138" (3.50mm)
  • Current Rating (IEC): 8A
  • Voltage Rating (IEC): 160V
  • Voltage Rating (UL): 300V
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Features: Latches
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Temperature Range: -40°C to 100°C
