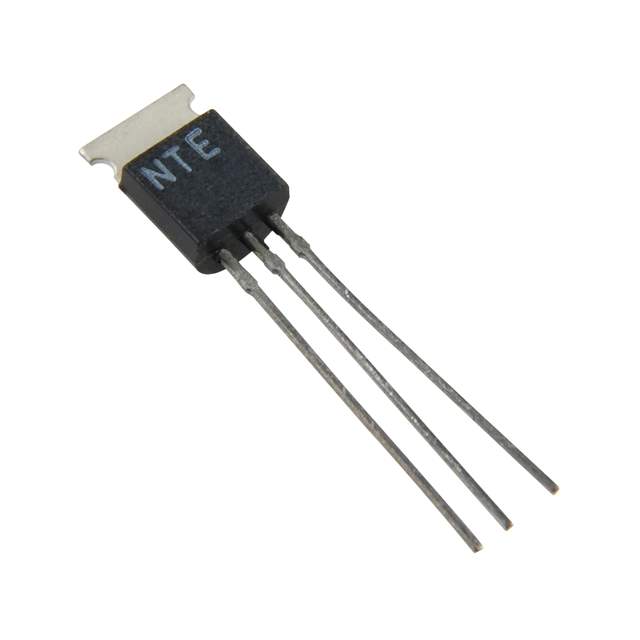

2N6714 PNP Transistor by ON Semiconductor

The 2N6714 is a versatile PNP bipolar junction transistor (BJT) designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This high-quality semiconductor device is designed for general-purpose amplifier and switching applications. It is widely recognized for its reliability and performance in a variety of electronic circuits.

Key Features:

• Voltage Ratings: The 2N6714 transistor is capable of withstanding collector-emitter voltages up to 40V, making it suitable for a wide range of medium voltage applications.
• Current Handling: It can handle continuous collector currents up to 1A, which allows it to drive moderate loads in electronic circuits.
• Power Dissipation: With a power dissipation of 625mW, this transistor can manage a fair amount of power for its size, ensuring efficient operation in various conditions.
• Gain Bandwidth Product (fT): The 2N6714 offers a transition frequency of 150MHz, providing good frequency response for amplification purposes.
• High Current Gain: This component features high current gain (hFE) characteristics, which can be advantageous in amplifiers requiring high input impedance.

Applications:

The 2N6714 PNP transistor is ideal for a broad spectrum of applications, including but not limited to:

• Signal amplification circuits
• Switching regulators
• Audio amplifiers
• Motor control circuits
• Power management solutions

Package and Quality:

ON Semiconductor ensures that the 2N6714 is provided in a TO-225 package, which is known for its compact size and ease of mounting on printed circuit boards (PCBs). The company's commitment to quality is evident in the rigorous testing and quality control measures that are applied to this product, ensuring that it meets the stringent requirements of the electronics industry.

For designers and engineers looking for a reliable PNP transistor for their next project, the 2N6714 from ON Semiconductor represents a solid choice that balances performance with durability.
