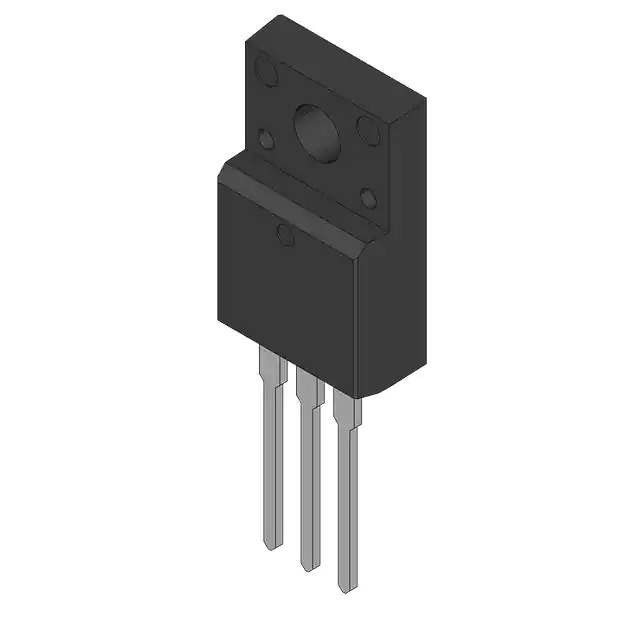

ON Semiconductor 2SA1469R PNP Transistor

The 2SA1469R is a high-quality PNP transistor manufactured by ON Semiconductor, a leader in the semiconductor industry. This bipolar junction transistor (BJT) is designed for use in a variety of applications, ranging from audio frequency amplifier stages to power management functions. Its robust construction and reliable performance make it suitable for both commercial and industrial uses.

Key Features

• Type: PNP Bipolar Junction Transistor (BJT)
• Voltage Ratings: The 2SA1469R is capable of withstanding collector-base voltages (VCBO) up to -120V, collector-emitter voltages (VCEO) up to -120V, and emitter-base voltages (VEBO) up to -5V.
• Current Handling: This transistor can handle continuous collector currents (IC) up to -1.5A, making it suitable for moderate power applications.
• Power Dissipation: With a power dissipation (PD) of 25W, the 2SA1469R can sustain a significant amount of power, ensuring stable operation under various conditions.
• Frequency Performance: It offers excellent frequency response, making it an ideal choice for audio applications.
• Package: Encapsulated in a TO-220AB package, the 2SA1469R ensures heat is effectively dissipated, maintaining thermal stability.

Applications

The ON Semiconductor 2SA1469R PNP transistor is versatile and can be implemented in a wide array of electronic circuits. Its applications include, but are not limited to:

• Audio frequency amplifier stages
• Signal processing
• Power regulators and converters
• Switching circuits
• Driver stages in high-fidelity amplifiers and sound systems

Quality and Reliability

ON Semiconductor is committed to delivering products that meet the highest standards of quality and reliability. The 2SA1469R transistor is no exception, undergoing rigorous testing to ensure it performs consistently across various conditions and usage scenarios. With its excellent amplification characteristics and power handling capabilities, the 2SA1469R is a reliable component for designers and engineers looking to build high-performance electronic systems.

Ordering Information

The 2SA1469R is available for ordering from ON Semiconductor and its authorized distributors. For detailed specifications, application notes, and additional resources, visit the ON Semiconductor website or contact their support team for technical assistance.
