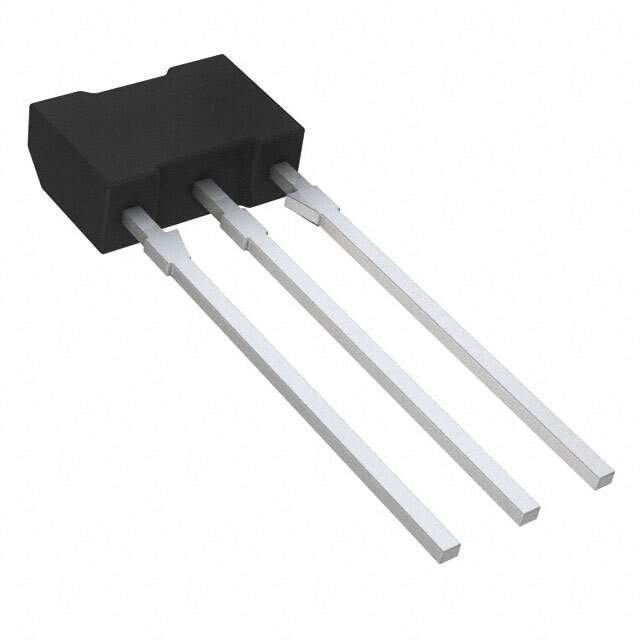

ON Semiconductor 2SA1705-T PNP Transistor

The 2SA1705-T is a high-quality PNP bipolar junction transistor (BJT) manufactured by ON Semiconductor, a leader in the semiconductor industry. This transistor is designed to offer excellent performance in various electronic applications, making it a versatile choice for designers and engineers looking to enhance their electronic circuits.

Key Features

• Voltage Ratings: The 2SA1705-T is characterized by its high collector-emitter voltage (VCEO) of -50V, which allows it to handle moderate power levels in electronic circuits.
• Current Capabilities: It has a continuous collector current (IC) rating of -2A, making it suitable for amplification and switching applications that require moderate current handling.
• Power Dissipation: With a power dissipation (PD) of 1.5W, this transistor can sustain a fair amount of heat generated during operation without degrading its performance.
• Gain Bandwidth Product: It features a decent gain bandwidth product (fT) of 120MHz, indicative of its ability to operate effectively at higher frequencies.
• High DC Current Gain: The 2SA1705-T offers a high DC current gain (hFE) range, which ensures efficient current amplification in the circuit.

Applications

The ON Semiconductor 2SA1705-T is ideal for a variety of applications, including but not limited to:

• Audio frequency amplifier stages
• Signal processing
• Power management systems
• Switching regulators
• Driver stages in Hi-Fi amplifiers and television circuits

Reliability and Quality

ON Semiconductor is renowned for its commitment to quality and reliability, and the 2SA1705-T is no exception. It is built to meet rigorous industry standards, ensuring a reliable performance in even the most demanding situations. The device is packaged in a TO-220AB package, which provides a robust and durable structure, as well as efficient thermal dissipation characteristics.

Whether you're designing consumer electronics or industrial control systems, the 2SA1705-T offers the performance and reliability that ON Semiconductor is known for. Its combination of high voltage and current ratings, along with its high-frequency response, makes it a strong choice for enhancing your next project.
