ON Semiconductor 4N37S Optocoupler

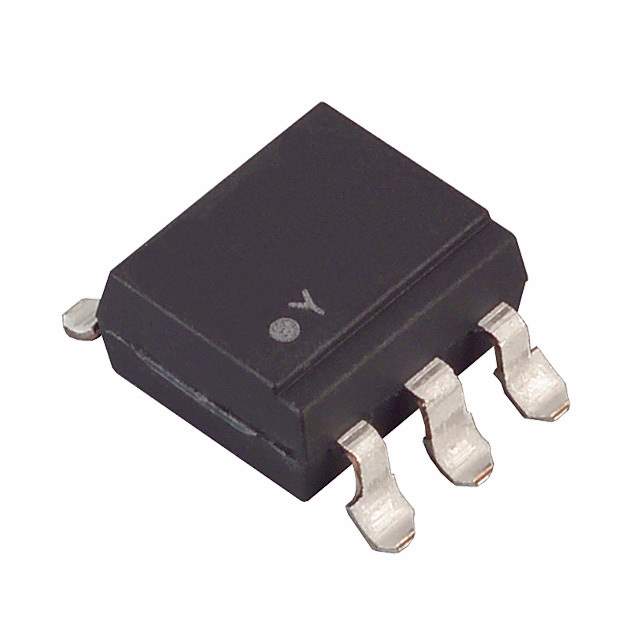

The ON Semiconductor 4N37S is a versatile optocoupler device designed to provide electrical isolation between its input and output with a high degree of safety and reliability. This optically coupled isolator consists of an infrared emitting diode and a silicon phototransistor, housed in a compact 6-pin DIP package, making it suitable for a wide range of applications in industrial, consumer, and computing environments.

Key Features

• High Isolation Voltage: The 4N37S boasts a high isolation voltage of 5000Vrms, which ensures that the signal and power domains are kept separate, thus providing protection against high voltage spikes and surges.
• Current Transfer Ratio (CTR): This optocoupler has a CTR range from 100% to 300%, ensuring reliable data transfer and signal integrity between the input and output.
• Wide Operating Temperature Range: With an operating temperature range of -55°C to +100°C, the 4N37S is suitable for use in harsh environmental conditions without compromising its performance.
• Industry Standard Package: The 6-pin DIP package is widely used and accepted in the industry, offering ease of integration into various circuit designs.
• Lead-Free and RoHS Compliant: The device is lead-free and complies with the RoHS directive, making it an environmentally friendly choice for electronic designs.

Applications

The 4N37S is ideal for use in applications that require high-voltage insulation and signal isolation, such as:

• Power supply regulation and control
• Isolated error amplifiers
• Switching power supplies
• Motor control circuits
• Industrial automation systems

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the 4N37S optocoupler is no exception. It is designed to meet stringent quality control standards, ensuring reliable performance and a long operational lifespan for your critical applications.
