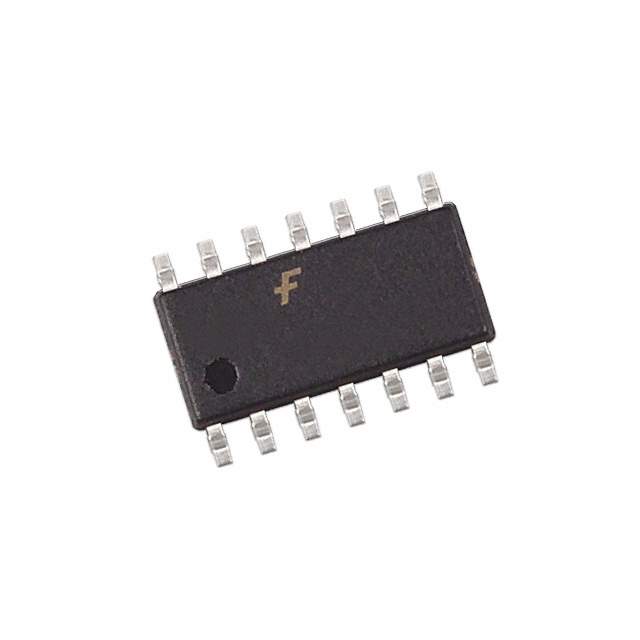

The 74F132SJ is a high-performance, Quad 2-Input NAND Schmitt Trigger manufactured by ON Semiconductor. Designed with cutting-edge technology, this integrated circuit (IC) is an essential component for a wide range of digital electronics, offering a combination of speed and reliability.

Key Features

• Logic Type: Quad 2-Input NAND Schmitt Trigger, providing a stable and reliable logic operation with hysteresis to improve noise margins.
• Package / Case: The device comes in a SOIC-14 package, which is a small-outline integrated circuit with 14 leads, providing a compact footprint for space-constrained applications.
• Operating Temperature: It operates over a broad temperature range, typically from 0°C to 70°C, making it suitable for commercial-grade applications.
• Supply Voltage: It supports a wide range of supply voltages from 4.5V to 5.5V, allowing for flexibility in various system designs.
• Logic Level - High: 2V minimum, ensuring compatibility with other standard 5V logic families.
• Logic Level - Low: 0.8V maximum, providing a clear distinction between high and low logic levels.
• Current - Output High, Low: 4mA at 5V, offering sufficient drive capability for typical applications.

Applications

The 74F132SJ is versatile and can be used in various digital applications such as signal conditioning, pulse shaping, and in systems requiring noise immunity. Its robust design makes it ideal for use in telecommunications, computing, and industrial electronics where high-speed and reliable logic operations are critical.

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the 74F132SJ is no exception. It is designed to meet stringent industry standards, ensuring high reliability and performance consistency. The device also benefits from ON Semiconductor's global support and technical expertise.
