The CAT28C16AL20 is a high-performance, 16-kilobit Parallel EEPROM (Electrically Erasable Programmable Read-Only Memory) integrated circuit, brought to you by the trusted and innovative manufacturer ON Semiconductor. This EEPROM device provides robust storage solutions for systems that require fast and reliable non-volatile memory. It is particularly well-suited for applications that need to store and retrieve data and configurations across power cycles without the need for a battery to maintain the data.

Key Features

• Memory Size: 16K (2K x 8)
• Access Time: 200 ns
• Single 5V ±10% Supply: Designed for low power consumption and high reliability.
• Automatic Write Timing: Internal control timer for write cycle management.
• Software Data Protection: Prevents inadvertent writes to the memory array.
• High-Endurance: Capable of 1,000,000 write cycles and 100-year data retention.

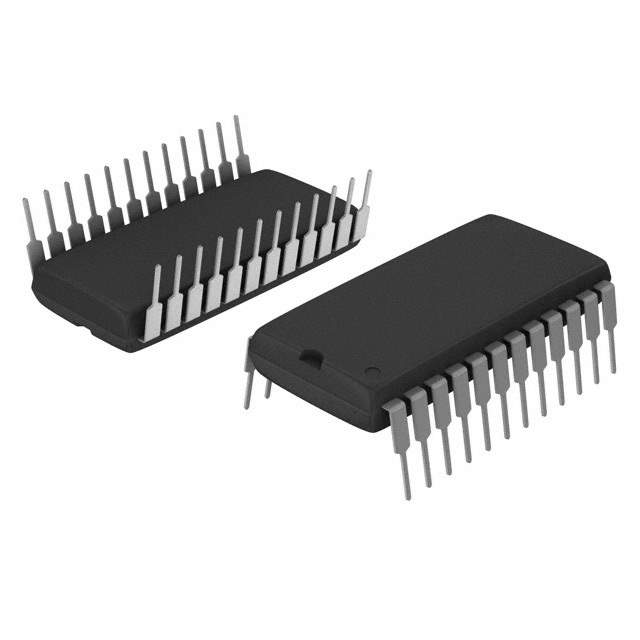

• Package: Available in a 24-pin DIP or PLCC package.
• Temperature Range: Operating temperatures from 0°C to +70°C.

Applications

The versatility of the CAT28C16AL20 makes it ideal for a wide array of applications, including but not limited to:

• Computer Systems
• Industrial Controls
• Telecommunication Systems
• Automotive Systems
• Consumer Electronics

Quality and Reliability

ON Semiconductor is known for its commitment to quality and reliability, and the CAT28C16AL20 is no exception. This EEPROM device is manufactured with the highest standards to ensure it meets the rigorous demands of industrial and commercial use. With its fast access time and robust data retention capabilities, it represents a reliable choice for designers looking to integrate non-volatile memory into their systems.

Support and Resources

ON Semiconductor provides comprehensive technical support for the CAT28C16AL20, including datasheets, technical documentation, and application notes. Designers can access these resources to ensure seamless integration and optimal performance in their applications.
