ON Semiconductor CAT28C256H13I15T EEPROM

The CAT28C256H13I15T from ON Semiconductor is a high-performance, 256-Kilobit parallel EEPROM (Electrically Erasable Programmable Read-Only Memory) integrated circuit, designed to provide a robust storage solution for advanced microcontroller-based systems. This non-volatile memory module offers an array of features that make it ideal for a wide range of applications including industrial control systems, automotive electronics, medical devices, and telecommunications infrastructure.

Key Features

• High Density: The device provides a substantial 256K (32K x 8) amount of storage space, allowing for efficient storage of configuration data, firmware, or any application-specific information that needs to be preserved across power cycles.
• Fast Access Time: With an access time of 150 ns, the CAT28C256H13I15T ensures quick data retrieval, contributing to the overall performance and responsiveness of the system it is integrated into.
• Low Power Consumption: This EEPROM is optimized for low power consumption, making it suitable for battery-operated or power-sensitive applications.
• Extended Temperature Range: It operates reliably across a wide temperature range from -40°C to +85°C, ensuring consistent performance even in harsh environmental conditions.
• Software Write Protection: The inclusion of software write protection helps to prevent inadvertent writes, thereby securing the integrity of the stored data.
• Endurance: The device boasts a high endurance with 100,000 write cycles, ensuring a long operational lifespan for applications that require frequent data updates.

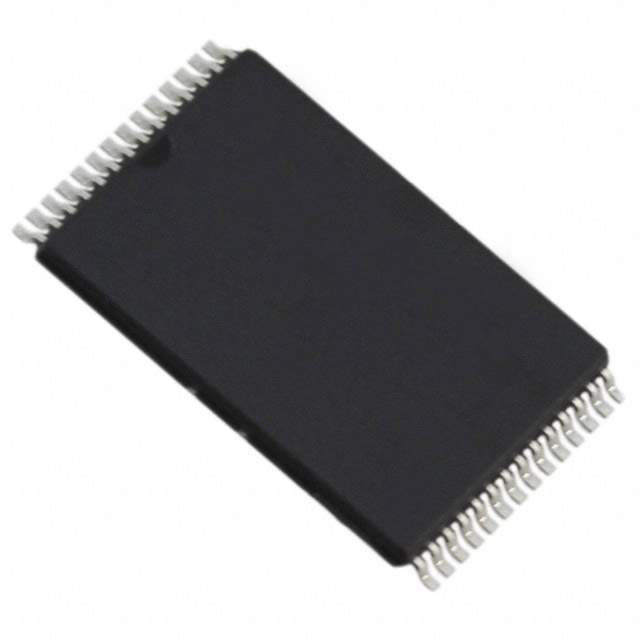

• Package: The CAT28C256H13I15T comes in a 32-pin TSOP package, which is suitable for surface mount technology and fits compactly onto modern printed circuit boards.

Applications

The versatility of the CAT28C256H13I15T EEPROM makes it an excellent choice for a myriad of applications. Its robustness and reliability are particularly beneficial in mission-critical systems where data integrity and uptime are paramount. Automotive systems utilize this EEPROM for storing calibration data, while industrial machines integrate it for firmware storage and parameter settings. In consumer electronics, it can be found in devices that require configuration settings to be preserved without constant power supply.

Overall, the CAT28C256H13I15T from ON Semiconductor represents a reliable and efficient solution for data storage needs, providing a combination of high density, fast access time, and low power consumption, all packed in a rugged package that can withstand demanding environments.
