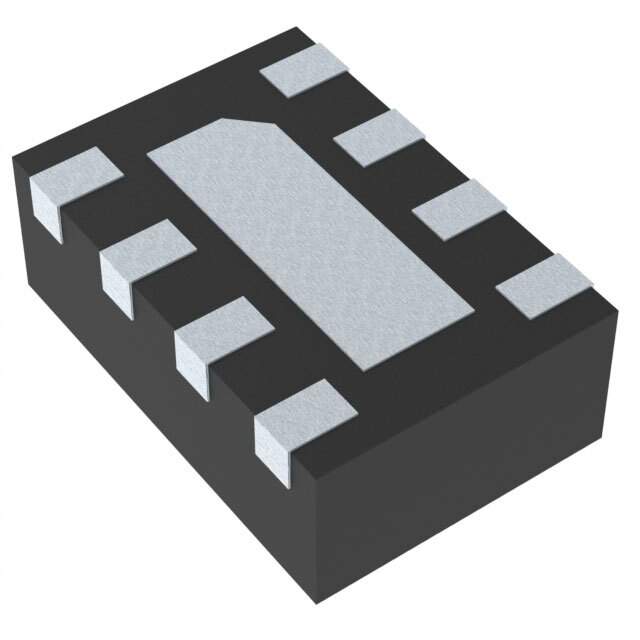

The ON Semiconductor CM1241-04D4 is a high-quality, robust ESD (Electrostatic Discharge) protection device designed to safeguard sensitive electronic components from electrostatic shocks. This device is an essential component for modern electronic systems that require reliable protection against the damaging effects of ESD events. The CM1241-04D4 is particularly suitable for applications such as mobile phones, portable electronics, computer interfaces, and other sensitive high-speed data line circuits.

Key Features

• Protection: The CM1241-04D4 offers four channels of ESD protection, ensuring multiple lines can be secured with a single device. This makes it an efficient solution for protecting a range of interfaces.
• Low Capacitance: Designed with low loading capacitance, it is ideal for preserving the integrity of high-speed signals without significant signal attenuation.
• Standards Compliance: It adheres to stringent ESD protection standards, including IEC 61000-4-2 (Level 4) and ISO 10605, providing assurance of its effectiveness in various environments.
• Versatility: The CM1241-04D4 is suitable for both uni-directional and bi-directional applications, offering flexibility in design for different circuit configurations.
• Compact Package: Housed in a small, lead-free, RoHS-compliant SOT-143 package, it is designed to minimize the use of PCB space while still delivering maximum protection.

Applications

The device is versatile and can be used in a variety of applications, including but not limited to:

• USB 2.0 and 3.0 Power and Data Line Protection
• Portable Electronics
• Smartphones and Other Mobile Devices
• Computer Peripherals and Interfaces
• High-Speed Data Line Protection

Technical Specifications

The CM1241-04D4 is characterized by a range of technical specifications that ensure its reliability and efficiency in protecting sensitive circuits:

• ESD protection of ±15kV (air discharge) and ±8kV (contact discharge)
• Low leakage current of less than 1µA at 5V
• Low operating and clamping voltages
• Fast response time to ESD strikes

With its combination of features, the ON Semiconductor CM1241-04D4 stands out as an excellent choice for designers looking to incorporate ESD protection into their systems without compromising on signal integrity or design space.
