The CM1248-08DE from ON Semiconductor is a robust electrostatic discharge (ESD) protection device designed to safeguard high-speed data lines from damaging ESD strikes. This component is specifically engineered to protect sensitive electronic equipment in a variety of applications, including mobile phones, personal computers, and other portable electronics.

Key Features:

• ESD Protection: The CM1248-08DE offers exceptional ESD protection, meeting the IEC61000-4-2 standard. It can withstand ESD events up to ±15kV (air discharge) and ±8kV (contact discharge), providing peace of mind for manufacturers and end-users alike.
• Low Capacitance: With a low loading capacitance of just 0.5pF per I/O, this device is ideal for protecting high-speed data lines without significantly affecting signal integrity.
• Multi-Line Protection: This component is capable of protecting up to eight data lines, making it highly efficient for space-constrained applications.

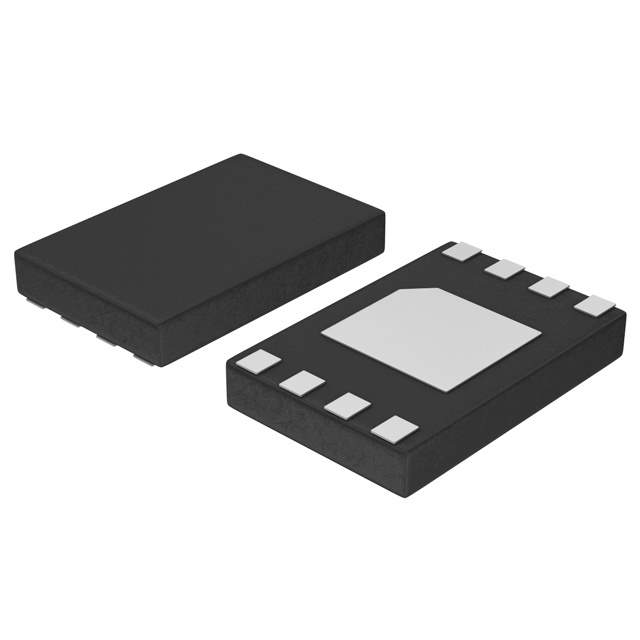

• Small Package Size: The CM1248-08DE comes in a compact μDFN-10 package, which minimizes PCB space requirements and is suitable for slim and sleek device designs.
• RoHS Compliant: Complying with the Restriction of Hazardous Substances (RoHS) directive, this product is free from environmentally harmful substances, making it a responsible choice for electronic designs.

Applications:

The versatility of the CM1248-08DE makes it suitable for a wide range of applications, including:

• USB 2.0 and 3.0 interfaces
• HDMI 1.3 and 1.4 ports
• DisplayPort interfaces
• LVDS interfaces
• Serial ATA ports
• Other high-speed data lines requiring ESD protection

ON Semiconductor's commitment to quality and reliability is evident in the CM1248-08DE. Its combination of high ESD protection, low capacitance, and multi-line coverage, all in a small package size, make it an excellent choice for designers looking to enhance the durability and longevity of their electronic products.
