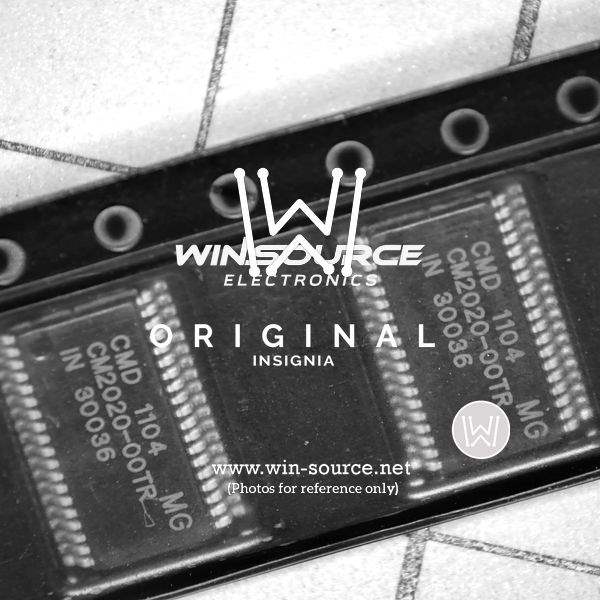

The CM2020-00TR is a cutting-edge HDMI interface protection device from ON Semiconductor, designed to safeguard high-definition multimedia interfaces against electrostatic discharge (ESD) and cable discharge events (CDE). This component is an essential safeguard for modern electronic equipment, ensuring the reliability and longevity of HDMI ports in consumer electronics.

Key Features

• ESD Protection: With its robust ESD protection, the CM2020-00TR can withstand ESD strikes of ±8kV contact discharge, based on the IEC 61000-4-2 standard, ensuring the HDMI interface remains safe from common electrostatic threats.
• Cable Discharge Event (CDE) Protection: Designed to handle the energy associated with CDEs, this device prevents damage to the HDMI port when a charged cable is connected.
• High Bandwidth: The CM2020-00TR supports full HDMI 1.3 bandwidth, making it suitable for high-definition video and audio applications without compromising signal integrity.
• Low Capacitance: The low capacitance design minimizes signal degradation, ensuring that high-speed digital signals are transmitted with minimal loss and distortion.

Applications

The CM2020-00TR is ideal for a wide range of applications that require reliable HDMI connectivity. It is particularly well-suited for use in:

• Digital TVs and HDTVs
• Blu-ray Disc players
• Set-top boxes
• Game consoles
• Personal computers
• HD projectors

Product Specifications

The CM2020-00TR by ON Semiconductor is a reliable and essential component for any device utilizing HDMI technology, providing peace of mind with its superior protection capabilities.
