The ON Semiconductor CS8156YTHA5 is a high-performance, fixed output voltage regulator designed to meet the stringent requirements of automotive and industrial applications. This device offers a robust power management solution, ensuring reliable operation even under extreme conditions.

Key Features:

• Fixed Output Voltage: This regulator provides a stable and precise output voltage, which is crucial for sensitive electronic components.
• High Output Current: Capable of delivering up to 5A of output current, the CS8156YTHA5 can power a wide range of high-current demanding devices.
• Low Dropout Voltage: Its low dropout performance ensures efficiency, providing maximum power conversion even when the input voltage is close to the output voltage.
• Thermal Protection: The device includes an over-temperature shutdown feature that protects the regulator and the overall system from excessive heat.
• Short-Circuit Protection: Built-in short-circuit protection enhances the safety and longevity of both the regulator and the connected electronic components.
• Wide Operating Temperature Range: With an operating temperature range of -40°C to 150°C, the CS8156YTHA5 is suitable for harsh environments, ensuring performance stability across various temperature conditions.

Applications:

• Automotive systems such as infotainment, ADAS, and body electronics
• Industrial control systems
• Power supplies for microcontrollers and microprocessors
• DC/DC converters

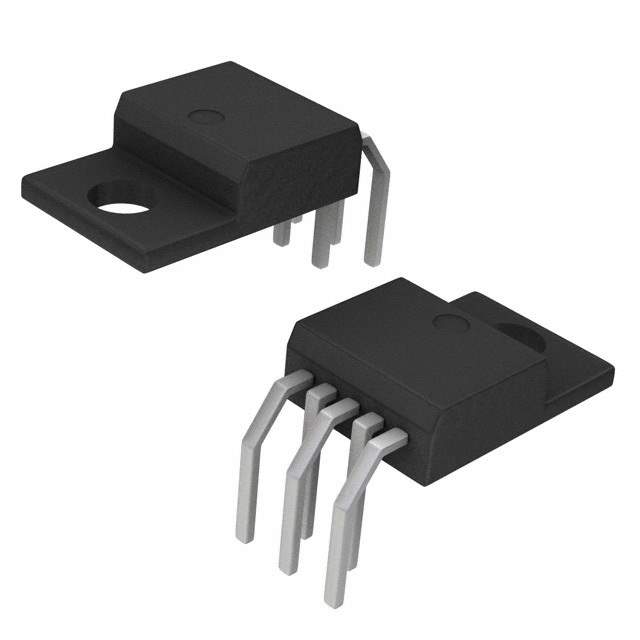

The CS8156YTHA5 voltage regulator from ON Semiconductor is packaged in a thermally efficient, surface-mount HPAK-5 casing, which aids in optimal heat dissipation and space-saving on the PCB. Its performance and durability make it an ideal choice for designers looking for a reliable power regulation solution in their automotive and industrial projects.
