The FAN53601AUC10X, from ON Semiconductor, is a highly efficient, small-footprint, fixed-frequency synchronous buck regulator that delivers a fixed output voltage of 1.0V. This regulator is designed to meet the rigorous power supply specifications of high-performance portable devices such as smartphones, tablets, and other handheld devices.

With an input voltage range of 2.3V to 5.5V, the FAN53601AUC10X is versatile for various applications. Its high-efficiency and low quiescent current make it ideal for battery-operated devices, helping to extend battery life and reduce thermal dissipation. The device is capable of delivering up to 600mA of continuous output current, ensuring ample power for demanding tasks.

The regulator operates at a fixed switching frequency of 3MHz, which allows the use of small, low-cost inductors and capacitors, resulting in a compact power supply solution with a minimal footprint. This feature is particularly beneficial for space-constrained applications.

The FAN53601AUC10X also incorporates a host of protection features to ensure the safety and reliability of the end application. These features include over-current protection, over-temperature protection, and under-voltage lockout, which collectively safeguard the device and the load from various fault conditions.

ON Semiconductor has designed the FAN53601AUC10X with a 100% duty cycle low dropout mode, allowing the regulator to maintain output voltage regulation even when the input voltage approaches the output voltage, which is critical during battery voltage drops.

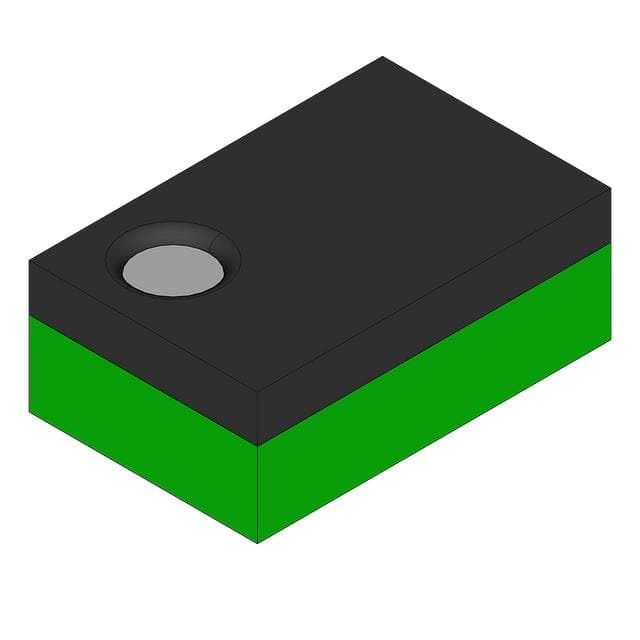

The FAN53601AUC10X comes in a compact, 10-bump, 1.63mm x 2.05mm WLCSP (Wafer Level Chip Scale Package), which is ideal for portable applications where space is at a premium. Its advanced packaging technology ensures excellent thermal performance and reliability.

In summary, the FAN53601AUC10X from ON Semiconductor is a power management solution that combines high efficiency, compact size, and robust protection features to meet the needs of the latest portable electronics.
