ON Semiconductor FDMS3660AS: A High-Performance PowerTrench® MOSFET

The FDMS3660AS from ON Semiconductor is a state-of-the-art N-Channel PowerTrench® MOSFET designed to deliver high efficiency and performance for a wide range of power management applications. This device is part of ON Semiconductor's highly acclaimed PowerTrench series, which is renowned for providing low on-resistance (R_DS(on)) and low gate charge (Q_g), leading to superior switching performance and minimized conduction losses.

The FDMS3660AS is optimized for synchronous rectification in DC/DC converters and is also well-suited for other applications such as power supplies, motor drives, and power inverter systems. Its advanced features and robust design make it an ideal choice for high-density power systems where efficiency and reliability are critical.

Key Features:

• Low On-Resistance: With an R_DS(on) as low as 3.3 mΩ at V_GS = 10 V, the FDMS3660AS ensures minimal power loss during operation, enhancing overall system efficiency.

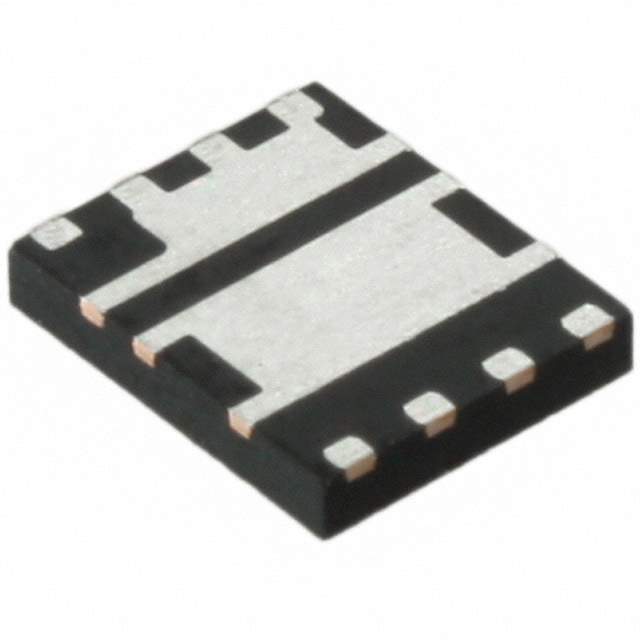

• High Power Density: The device comes in a compact 5 mm x 6 mm Power 56 package, which allows for a smaller footprint and reduced board space without compromising on power handling capabilities.
• High-Temperature Performance: Capable of operating at a junction temperature range of -55°C to 150°C, the FDMS3660AS is designed to withstand harsh environments and maintain stable performance.
• Fast Switching: The low gate charge and optimized capacitance profile enable fast switching speeds, reducing switching losses and improving the power efficiency of the application.
• Environmentally Friendly: The device is RoHS compliant and free from lead and other environmentally sensitive materials, making it a responsible choice for electronic designs.

Applications:

• DC/DC Converters
• Power Supplies for CPU, GPU, Memory, and Motherboards
• Motor Drives
• Power Inverter Systems
• Point of Load (POL) Modules

In summary, the ON Semiconductor FDMS3660AS N-Channel PowerTrench® MOSFET is a highly efficient, reliable, and versatile component that meets the needs of modern high-performance power management systems. Its combination of low on-resistance, fast switching, and high-temperature resilience makes it an excellent choice for engineers looking to optimize their power designs for both performance and space.
