ON Semiconductor FDMS86150A N-Channel PowerTrench® MOSFET

The FDMS86150A is a state-of-the-art N-Channel PowerTrench® MOSFET produced by ON Semiconductor, a leader in power and signal management solutions. This high-performance MOSFET is designed to handle high-efficiency power conversion and switching with minimal power loss, making it an ideal choice for a wide range of applications including DC-DC converters, power supplies, motor drives, and more.

With an advanced trench technology, the FDMS86150A offers excellent R_DS(on) and low gate charge performance, which translates to reduced conduction and switching losses. This MOSFET operates with a drain-source voltage (V_DSS) of 150V, which provides a good safety margin for applications with high voltage requirements. It also features a continuous drain current (I_D) of 13A, ensuring it can handle significant current loads without overheating or failing.

The device's power dissipation is rated at 4.5W, which is indicative of its ability to manage thermal conditions effectively. Its low total gate charge (Q_g) results in faster switching speeds, improving the efficiency of power conversion circuits. Additionally, the FDMS86150A has a maximum junction temperature of 150°C, providing a robust thermal performance for challenging environments.

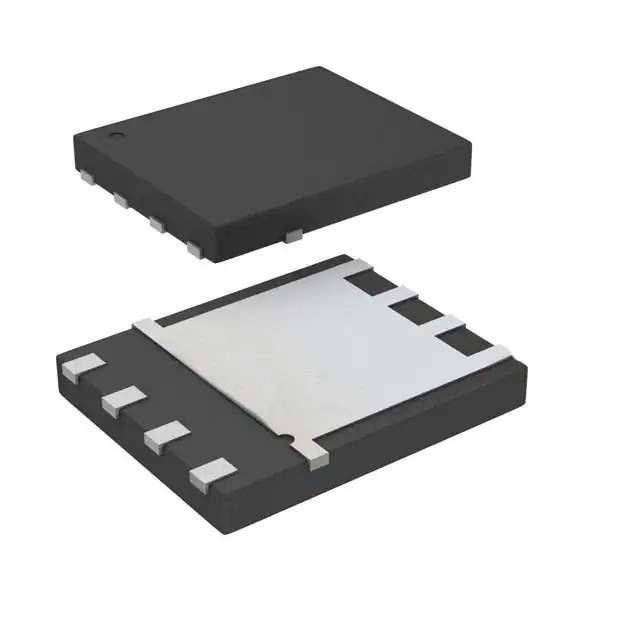

The FDMS86150A comes in a compact 8-PowerTDFN package with a footprint that is optimized for reduced board space, making it suitable for space-constrained applications. The package is designed for improved thermal resistance, ensuring reliable operation under high current and temperature conditions.

ON Semiconductor has equipped the FDMS86150A with built-in ESD protection, which safeguards the device against electrostatic discharge events, enhancing its durability and reliability. This MOSFET is RoHS compliant, reflecting ON Semiconductor's commitment to environmental responsibility by avoiding the use of hazardous substances in its manufacturing processes.

In summary, the ON Semiconductor FDMS86150A N-Channel PowerTrench® MOSFET is a high-efficiency, reliable, and robust component suitable for a variety of high-performance power management applications.
