Introducing the FSA2866UMX Dual SPDT Analog Switch

ON Semiconductor proudly presents the FSA2866UMX, a high-performance, dual single-pole, double-throw (SPDT) analog switch designed for signal switching applications. This versatile component is a perfect fit for a wide array of devices, including mobile phones, PDAs, and other portable electronic devices where space is at a premium.

The FSA2866UMX operates over a broad voltage range from 1.65V to 4.3V, allowing it to accommodate the needs of many low-voltage applications. Its low on-resistance of just 0.5Ω (typical) at a 2.7V supply ensures minimal signal distortion and power loss, which is crucial for maintaining signal integrity in analog and digital signal switching.

This analog switch is distinguished by its break-before-make switching action, which prevents signal overlap and ensures reliable switching between channels. Additionally, the FSA2866UMX features a high current handling capacity, making it suitable for a variety of signal routing tasks that require both precision and power.

ON Semiconductor has engineered the FSA2866UMX with an eye towards power conservation. The device boasts ultra-low power consumption, with a quiescent current of less than 1µA, which is ideal for battery-powered applications where power efficiency is paramount.

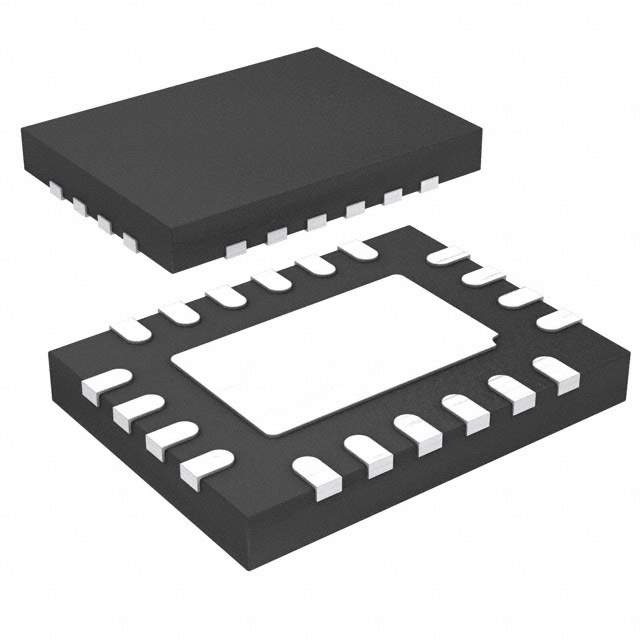

The FSA2866UMX is housed in a compact, space-saving UMLP package, measuring only 1.8mm x 2.6mm with a 0.5mm pitch. This micro-footprint allows designers to maximize board space without sacrificing performance. For ease of integration into various designs, the switch is also compatible with a wide range of logic control input levels.

With its combination of low on-resistance, wide voltage range operation, and minimal power consumption, the FSA2866UMX stands out as a smart choice for designers who require a reliable and efficient analog switch. ON Semiconductor's commitment to quality ensures that the FSA2866UMX will meet the rigorous demands of modern electronic designs, providing both performance and reliability.

Choose the FSA2866UMX for your next project and experience the difference that ON Semiconductor's advanced technology can make in your electronic devices.
