The LC75874W-E is a versatile LCD controller and driver system designed by ON Semiconductor, a trusted leader in innovative semiconductor solutions. This product is particularly suited for driving dot-matrix liquid crystal graphic displays, offering high-level performance and reliability for a wide range of applications.

Key Features

• Display Capabilities: The LC75874W-E supports a wide range of display formats, with the ability to drive up to 192 segments (24 segments x 8 commons) which makes it perfect for applications requiring detailed graphic displays.
• Integrated RAM: It comes with an onboard display data RAM, which allows for efficient data storage and manipulation for dynamic display content.
• Multiple Display Modes: The controller supports multiple display modes, including static, 1/2, 1/3, and 1/4 duty cycles, offering flexibility to match specific display requirements.
• Low Power Consumption: Designed with energy efficiency in mind, the LC75874W-E operates with low power consumption, making it ideal for battery-powered devices.
• Serial Interface: It features a serial interface for communication, which simplifies the connection to a microcontroller and reduces the number of required I/O pins.

Applications

The LC75874W-E is suitable for a broad range of products, including but not limited to:

• Automotive dashboards and infotainment systems
• Home appliances with graphic displays
• Industrial control panels
• Medical equipment
• Portable instrumentation

Technical Specifications

Some of the technical specifications of the LC75874W-E include:

• Operating Voltage: 2.7V to 5.5V
• Operating Temperature: -40°C to +85°C

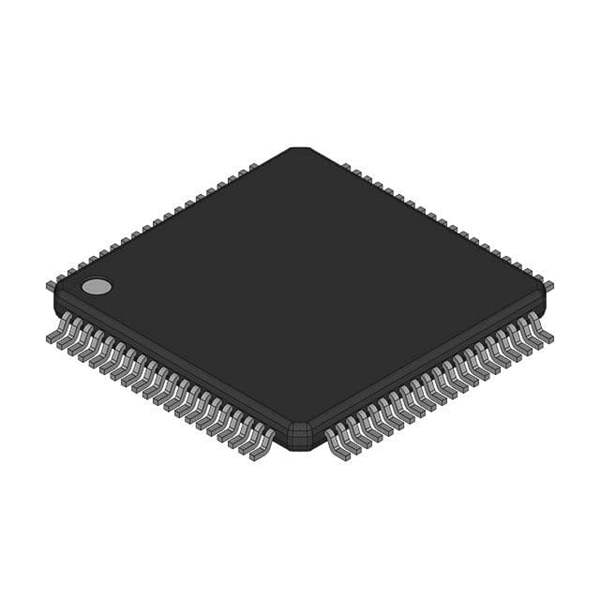

• Package: QFP (Quad Flat Package)

ON Semiconductor's commitment to quality and performance is evident in the LC75874W-E LCD controller. Its combination of versatility, ease of use, and energy efficiency make it a top choice for developers looking to create sophisticated display interfaces in their products.
