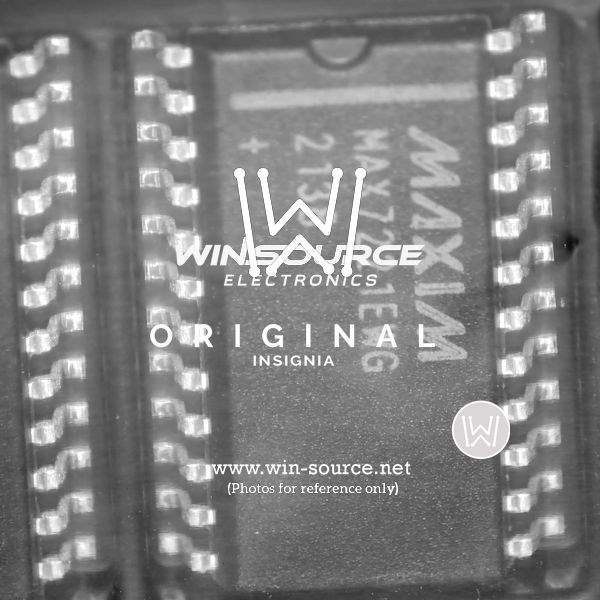

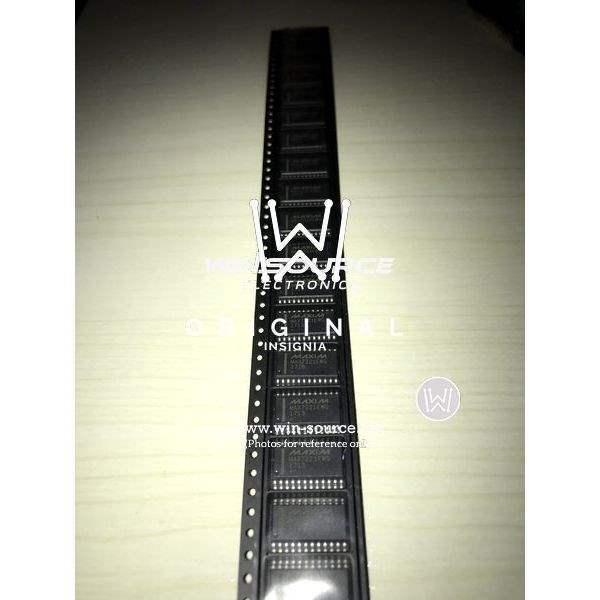

Maxim Integrated MAX7221EWG+ Serially Interfaced, 8-Digit LED Display Driver

The MAX7221EWG+ from Maxim Integrated is a compact, serial input/output common-cathode display driver that can interface microprocessors to 7-segment numeric LED displays of up to 8 digits, bar-graph displays, or 64 individual LEDs. It is designed to simplify the process of interfacing with LED displays by providing a convenient serial interface as well as a host of features that reduce the complexity of driving LEDs and enhance display flexibility and performance.

Key features of the MAX7221EWG+ include:

• SPI/QSPI/MICROWIRE Serial Interface: The device supports easy integration with most microcontrollers, enabling the user to send data and commands via a simple 4-wire interface.
• Drive Capability: It can drive up to 8 digits of 7-segment displays or 64 individual LEDs while offering individual LED segment control.
• Integrated Multiplex Scan Circuitry: This feature allows for the scanning of display digits, which reduces the need for external components and simplifies the design.
• Digital Brightness Control: The MAX7221EWG+ provides 16 levels of brightness control to adjust the intensity of the LED display.
• No External Resistors Needed: It includes an internal BCD code-B decoder and multiplex scan circuitry that eliminates the need for external resistors, saving space and reducing component count.
• Slew-rate Limited Segment Drivers: This reduces EMI and eliminates the need for external resistors when using long interconnect cables.
• Low Power Shutdown Mode: The device features a low power shutdown mode with a current draw of less than 5µA, which is ideal for power-sensitive applications.

The MAX7221EWG+ operates over a wide temperature range and is available in a 24-pin wide SO package. Its robust design and ease of use make it an excellent choice for applications such as panel meters, set-top boxes, and any other systems that require dynamic LED display capabilities.

With its combination of integrated features and ease of use, the MAX7221EWG+ stands out as a versatile and efficient solution for controlling LED displays in a wide range of electronic products.
