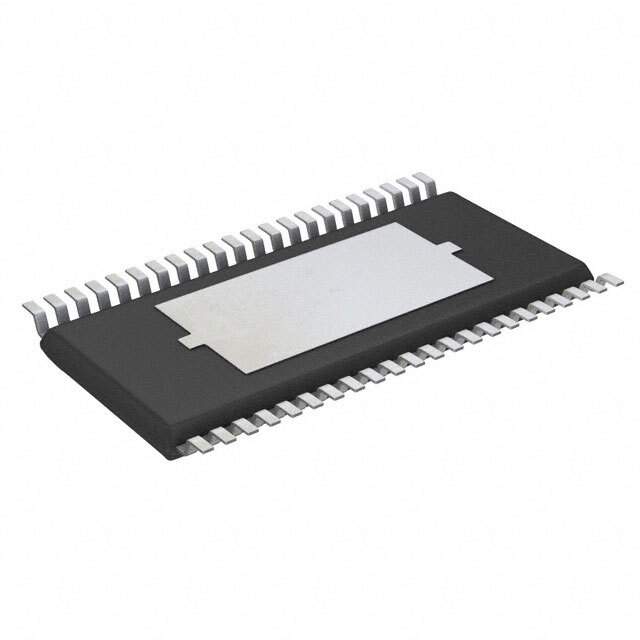

ON Semiconductor's LV5235VZ-TLM-H is an advanced motor driver IC designed to cater to a wide range of applications requiring precise motor control. This versatile component is particularly suitable for portable devices due to its compact size and energy efficiency.

Key Features

• Integrated Dual H-Bridge: The device includes two H-bridge drivers capable of driving a pair of DC motors or one stepper motor, providing flexibility in application design.
• Low-Voltage Operation: With an operating range starting as low as 2.5V, the LV5235VZ-TLM-H is ideal for battery-powered applications where power conservation is crucial.
• High-Efficiency: The device is designed for high efficiency, which helps to reduce power consumption and extend battery life in portable applications.
• Thermal Shutdown Protection: To ensure reliability and longevity, the IC includes a thermal shutdown feature that prevents damage from overheating.
• Compact Packaging: Housed in a small package, the LV5235VZ-TLM-H saves valuable board space and is well-suited for compact electronic assemblies.

Applications

The LV5235VZ-TLM-H is optimized for a variety of applications, including but not limited to:

• Portable electronic devices
• Battery-powered toys
• Small household appliances
• Office automation machines
• Precision instrumentation

Technical Specifications

Parameter Value Supply Voltage (V<sub>CC) 2.5V - 9.0V Output Current (Max) 1.2A Operating Temperature -20°C to +85°C Package Lead-free, halogen-free

ON Semiconductor's LV5235VZ-TLM-H motor driver IC is a state-of-the-art solution for designers looking to incorporate reliable motor control into their applications without compromising on space or power efficiency.
