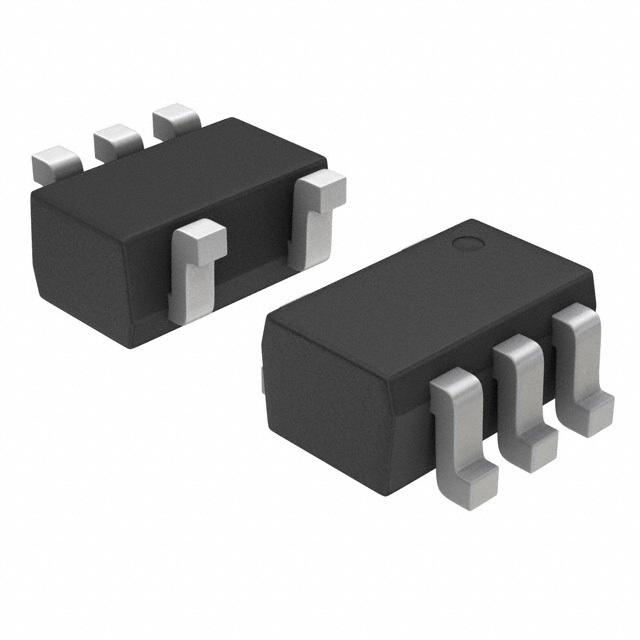

Product Overview: M74VHC1G126DFT2G by ON Semiconductor

The M74VHC1G126DFT2G is a high-performance, single non-inverting bus buffer gate with 3-state output, designed and manufactured by ON Semiconductor. This advanced CMOS device is part of ON Semiconductor's VHC family, offering a blend of high speed and low power consumption that is well-suited for a variety of digital applications.

Key Features

• Advanced High-Speed CMOS Technology: The M74VHC1G126DFT2G is built using advanced CMOS technology, which ensures fast switching speeds while maintaining low power dissipation.
• 3-State Output: The 3-state output feature allows for multiple devices to share a common bus line, enhancing the device's versatility in complex digital systems.
• Power Down Protection: Integrated power down protection on inputs and outputs helps to prevent any erratic behavior of the device when it is powered off, hence securing system integrity.
• Low Power Consumption: With its low power characteristics, this buffer gate is optimized for low voltage operation, making it suitable for battery-powered and portable devices.
• High Noise Immunity: The device boasts a high level of noise immunity, which is critical for reliable operation in electrically noisy environments.
• Wide Operating Voltage Range: It operates over a wide voltage range from 2V to 5.5V, accommodating various logic levels and interfacing requirements.
• Lead-Free and RoHS Compliant: The M74VHC1G126DFT2G is lead-free and complies with the RoHS directive, making it an environmentally friendly choice for electronic designs.

Applications

The ON Semiconductor's M74VHC1G126DFT2G is ideal for a broad range of applications including:

• Bus Interface/Buffering
• Signal Gating
• Logic Level Shifting
• Memory Address Driving
• Line Driving

With its robust design and flexible features, the M74VHC1G126DFT2G is a perfect choice for designers looking to enhance the performance and efficiency of their digital systems.
