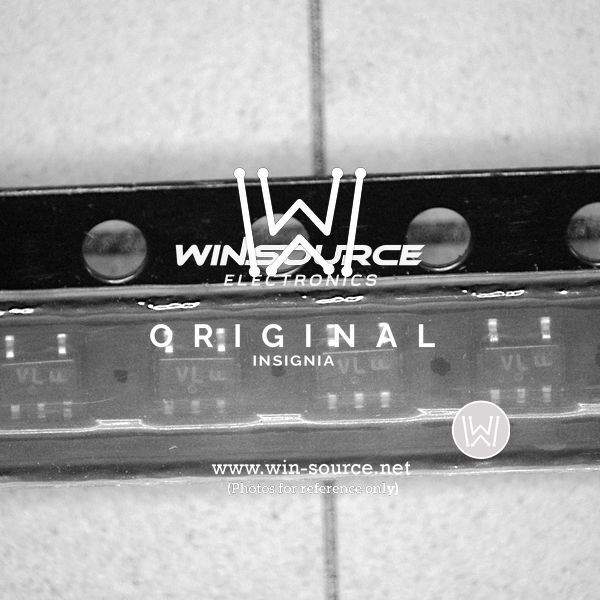

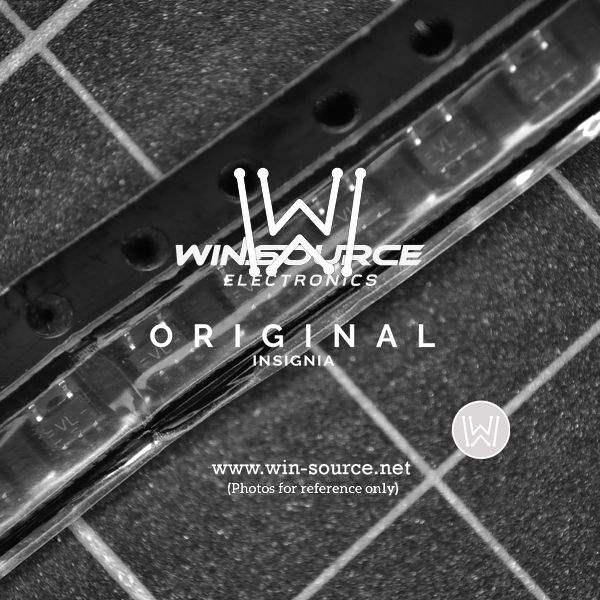

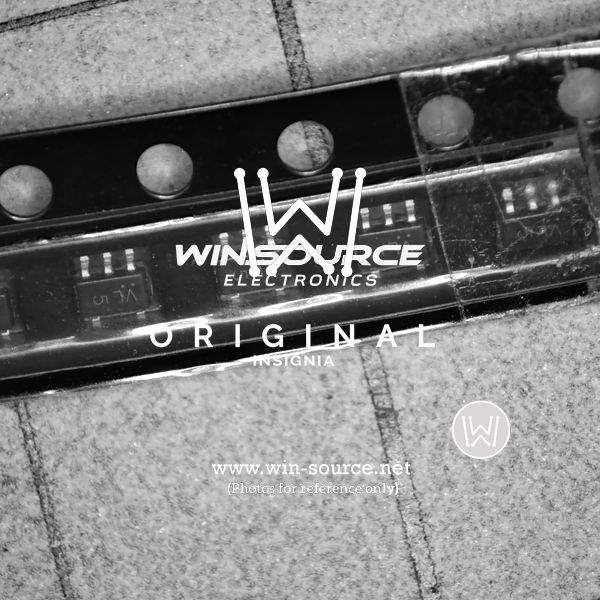

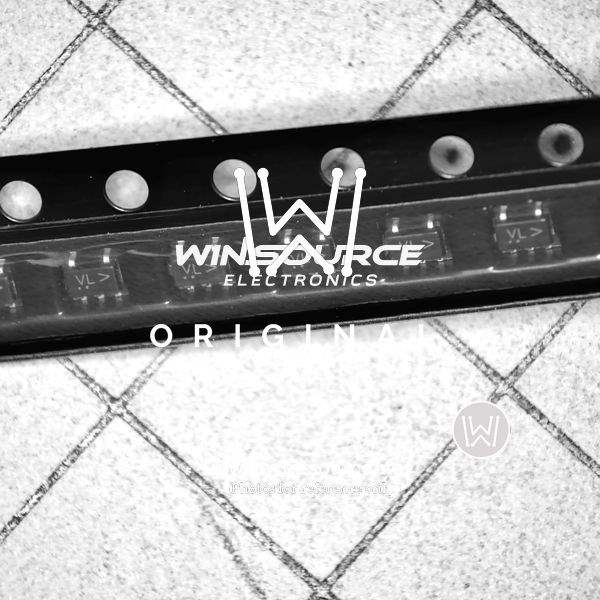

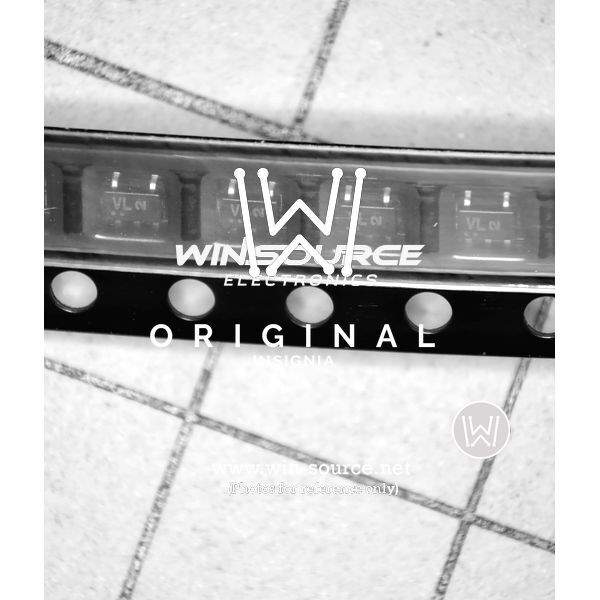

M74VHC1GT50DFT1G

Part No M74VHC1GT50DFT1G
Manufacturer ON Semiconductor
Catalog Logic - Buffers, Drivers, Receivers, Transceivers
Description IC BUFF CMOS LVL/SFTR N-I SOT353
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type Buffer, Non-Inverting
Number of Elements 1
Number of Bits per Element 1
Output Type Push-Pull
Current - Output High, Low 8mA, 8mA
Supply Voltage - Operating 1.65 V to 5.5 V
Temperature Range - Operating -55°C to 125°C (TA)
Mounting SMD (SMT)
Case / Package SC-88A (SC-70-5 / SOT-353)
Win Source Part Number 021007-M74VHC1GT50DFT1G
Ultra Librarian 3D Model Ultra Librarian M74VHC1GT50DFT1G CAD Model

Description

M74VHC1GT50DFT1G from ON Semiconductor is a logic device in the Buffers, Drivers, Receivers, Transceivers category that is typically considered for compact digital signal interfacing, logic-level conditioning, and general-purpose buffering in embedded electronics. Parts in this class are often used where designers need clean signal transfer between controllers, sensors, timing logic, or peripheral circuits while maintaining small board area and efficient system design. This device may be relevant in consumer electronics, industrial control boards, portable equipment, and other space-constrained applications that depend on reliable single-channel logic functions. For sourcing and long-term design planning, the current lifecycle status is listed as unknown, so procurement teams and engineers should verify ongoing manufacturer support before committing to new production builds. RoHS compliance information is not available in the provided data and should be confirmed through the official ON Semiconductor datasheet, manufacturer declarations, or authorized distribution channels before release to production.
