ON Semiconductor MBR4045WTG Overview

The MBR4045WTG is a high-performance Schottky rectifier designed by ON Semiconductor, renowned for its efficiency and reliability in power management applications. This component is particularly well-suited for use in switching power supplies, converters, free-wheeling diodes, and reverse battery protection, making it a versatile choice for various electronic devices and systems.

Key Features

• Voltage Rating: The MBR4045WTG has a maximum repetitive peak reverse voltage of 45V, which allows it to handle significant voltage levels without failure, ensuring a stable performance in high-voltage applications.
• Current Capacity: With a high forward continuous current rating of 40A, this rectifier can support applications with substantial power requirements, maintaining efficiency even under heavy load conditions.
• Low Power Loss: The low forward voltage drop feature minimizes power loss during operation, contributing to the overall energy efficiency of the system it is integrated into.
• High-Temperature Operation: Capable of operating at junction temperatures ranging from -65°C to 175°C, the MBR4045WTG is suitable for use in environments with high thermal demands.

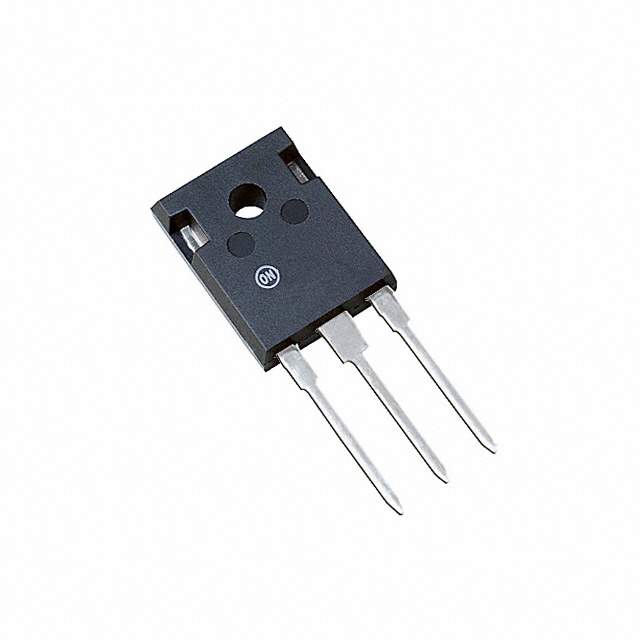

• Package: The device is housed in a TO-247 package, which offers excellent power dissipation and mechanical robustness, making it a reliable choice for various applications.

Applications

The MBR4045WTG is ideal for a broad range of applications, including:

• Power supply units for computers, servers, and telecommunications equipment
• Automotive charging systems
• Industrial power inverters
• Solar power systems and photovoltaic inverters
• Battery charging systems for electric vehicles and consumer electronics

Quality and Reliability

ON Semiconductor's commitment to quality ensures that the MBR4045WTG meets stringent industry standards for performance and reliability. The device's robust construction and proven design make it a preferred choice for engineers and designers looking for a reliable Schottky rectifier to incorporate into their power management solutions.

Overall, the MBR4045WTG from ON Semiconductor is a testament to the company's dedication to providing high-quality components that meet the evolving needs of modern electronic systems.
