The ON Semiconductor MBR745G is a highly efficient, robust Schottky barrier rectifier designed for high-performance power conversion applications. This rectifier is well-suited for use in switch-mode power supplies (SMPS), uninterruptible power supplies (UPS), DC-DC converters, and free-wheeling diode applications, among others.

Key Features

• Voltage Rating: The MBR745G boasts a maximum repetitive peak reverse voltage (Vrrm) of 45V, making it suitable for low voltage applications that require efficient switching.
• Current Capacity: With a high forward continuous current of 7.5A, this device can handle significant current loads, contributing to its versatility in various power applications.
• Low Forward Voltage Drop: The low forward voltage drop (Vf) minimizes power loss and improves efficiency, which is critical in power-sensitive designs.
• High Surge Capability: It has the ability to manage high surge currents without performance degradation, ensuring reliability under transient conditions.

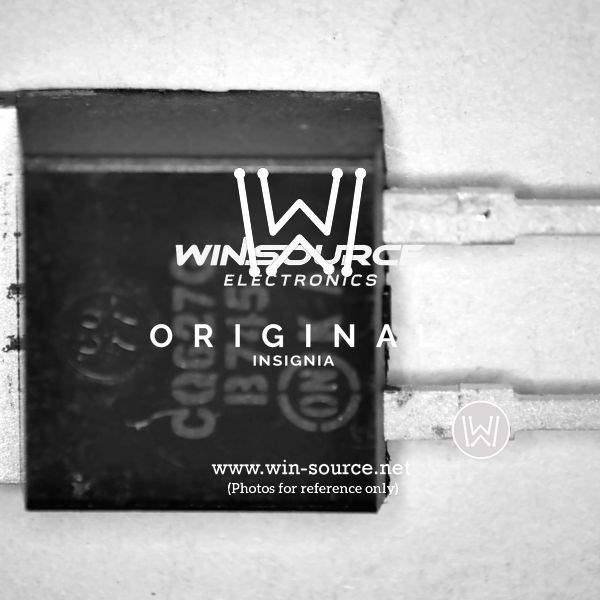

• Package: Housed in a TO-220 package, the MBR745G provides a compact solution with easy mounting and excellent thermal performance.
• Operating Temperature: It operates within a junction temperature range of -65°C to 175°C, accommodating a wide range of environmental conditions.

Performance Advantages

The MBR745G is engineered to offer superior conduction and switching characteristics. The use of Schottky barrier technology reduces the power losses associated with rectification, enhancing overall system efficiency. Its high surge capacity ensures that the device can handle peak currents without failure, which is particularly important in applications where power spikes are common.

Applications

This Schottky barrier rectifier is ideal for a variety of applications, including:

• Power supply design, particularly in high-frequency output rectification stages
• Automotive applications requiring high reliability and performance
• Industrial power systems where efficiency and thermal performance are critical
• DC power systems and PV solar power inverters

The MBR745G from ON Semiconductor is a testament to the company's commitment to providing power management solutions that meet the needs of modern electronic systems. It stands out for its efficiency, reliability, and versatility, making it a preferred choice for engineers and designers worldwide.
