Products specifications

Categories Integrated Circuits
Manufacturer ON Semiconductor
Packaging Tube/Rail
Status Active
Driven Configuration Low-Side
Channel Type Independent
Number of Drivers 2
Gate Type N-Channel MOSFET
Supply Voltage - Operating 6.1 V to 18 V
Logic Voltage - VIL, VIH 0.8V, 2.6V
Current - Peak Output (Source, Sink) 1.5A, 1.5A
Input Type Non-Inverting
Rise and Fall Time 36ns, 32ns
Temperature Range - Operating 0°C to 150°C (TJ)
Mounting Through Hole
Case / Package 8-PDIP
Win Source Part Number 1073511-MC34152PG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MC34152PG CAD Model

Description

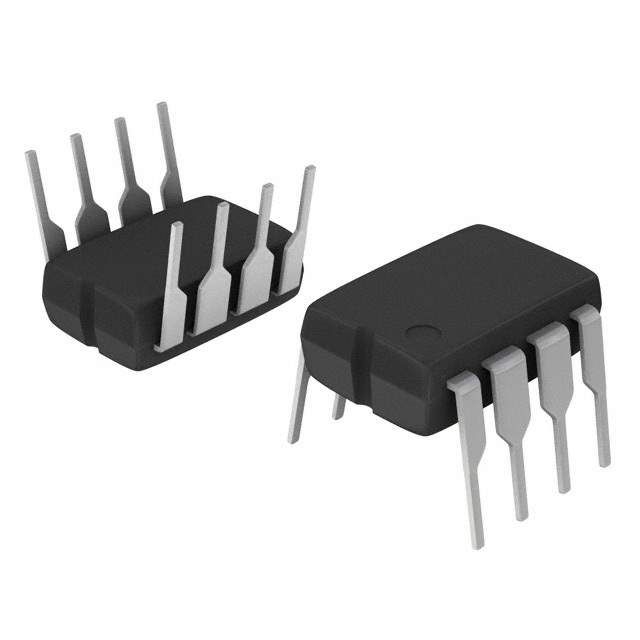

ON Semiconductor MC34152PG - High Speed Dual MOSFET Drivers

The ON Semiconductor MC34152PG is a high-speed dual MOSFET driver designed to accommodate a wide variety of applications, including motor controls, switching power supplies, and converters. This versatile chip is engineered to provide efficient and reliable performance for driving MOSFETs and IGBTs.

Key Features:

  • High Peak Output Current: The MC34152PG can deliver a robust peak output current, ensuring that connected MOSFETs switch rapidly, enhancing overall system performance.
  • Wide Supply Voltage Range: This MOSFET driver operates over a broad supply voltage range, making it suitable for diverse applications and ensuring compatibility with various circuit designs.
  • Low Shoot-Through Current: Its design minimizes shoot-through current, which is crucial for preventing damage to the MOSFETs during the transition period of the switching phase.
  • Dual Independent Channels: The chip contains two independent driver channels that can be used in parallel for higher current applications or separately for driving two different MOSFETs.
  • Fast Rise and Fall Times: With its quick rise and fall times, the MC34152PG reduces switching losses in MOSFETs, improving the efficiency of the overall system.
  • Matched Propagation Delays: Both channels have matched propagation delays which is essential for applications requiring synchronized switching.
  • Under-voltage Lockout: The built-in under-voltage lockout feature ensures that the driver operates only when the supply voltage is within an acceptable range, thus protecting the device and the overall circuit.

Applications:

The MC34152PG is ideal for a broad range of applications. It is commonly used in switch-mode power supplies (SMPS), DC-to-DC converters, high-speed power MOSFET and IGBT switching, motor control circuits, and class D switch-mode amplifiers. Its robust design and flexibility make it a go-to choice for engineers and designers looking to enhance the performance and reliability of their power management systems.

With ON Semiconductor's reputation for quality and reliability, the MC34152PG MOSFET driver is a solid choice for your high-speed switching needs.
