ON Semiconductor MC34166T Switching Regulator

The MC34166T is a versatile and robust switching regulator from ON Semiconductor, designed to cater to a wide variety of power supply applications. This high-performance device is particularly suitable for step-down, step-up, and voltage-inverting applications, providing design flexibility for engineers.

The MC34166T operates at a fixed frequency, which is set by an external resistor and capacitor, and it has a typical switching frequency of 72 kHz. This high frequency allows for the use of smaller, more efficient inductors and capacitors, resulting in a compact power supply design with excellent power efficiency.

Featuring a wide input voltage range from 7.5V to 40V, the MC34166T is capable of delivering output currents up to 3A with excellent line and load regulation. This makes it an ideal choice for battery-operated devices, automotive applications, and portable electronics, where a stable and reliable power source is critical.

The device includes a number of built-in protection features, such as thermal shutdown, current limit protection, and a latch-off mechanism for overcurrent conditions. These features ensure the longevity and safety of both the regulator and the overall system it is integrated into.

Another key feature of the MC34166T is its high efficiency, which helps to minimize heat generation and energy loss, thereby extending battery life in portable applications. The regulator also offers low standby current, further conserving energy when the device is in idle mode.

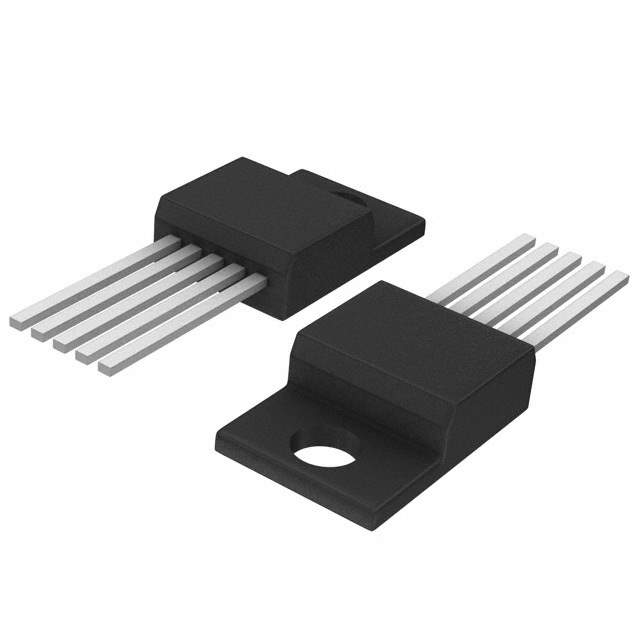

The MC34166T comes in a thermally efficient 5-lead TO-220 package, which is designed to handle high-power applications and ensure reliable operation even under challenging thermal conditions. Its compact size and ease of use make it an excellent choice for a wide range of power supply designs.

Overall, the ON Semiconductor MC34166T switching regulator is a highly reliable and efficient solution for designers looking to create sophisticated power management systems with minimal external components and reduced design complexity.
