ON Semiconductor MC74HC640AN: Octal 3-State Inverting Transceiver

The MC74HC640AN is a high-performance, integrated circuit manufactured by ON Semiconductor. This device is an octal 3-state inverting transceiver designed for use in communication, control systems, and data processing applications where high-speed and low power are essential. The MC74HC640AN is part of the HC family and is fabricated with silicon gate CMOS technology, ensuring compatibility with all standard logic families through its wide operating voltage range.

The transceiver contains eight bidirectional inverting buffers and has two separate power supply rails, one for the logic portion and the other for the bus drivers, which allows for mixed-voltage operation. It operates at a voltage range from 2V to 6V, providing the flexibility to be used in various system-level applications. The low power consumption makes it ideal for battery-operated and power-sensitive systems without compromising the performance.

Each octal buffer of the MC74HC640AN has 3-state outputs, including separate output enable inputs for each side. The 3-state outputs allow for connection to a bus-oriented system where multiple devices can share a common data path. When the output enable (OE) inputs are high, the outputs are in a high impedance state, which effectively disconnects the transceiver from the bus.

One of the key features of the MC74HC640AN is its high noise immunity, which is characteristic of CMOS devices. It also possesses a significant drive capability, with the ability to drive up to 15 LSTTL loads. The pin configuration of the device is industry standard, making it easy to integrate into existing designs or for use in new projects.

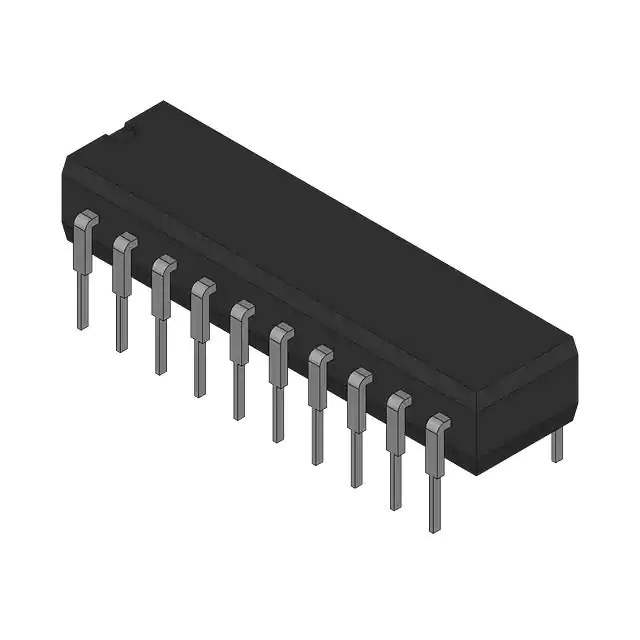

The MC74HC640AN is packaged in a standard 20-pin DIP (Dual In-line Package), which is suitable for through-hole mounting, ensuring easy assembly and prototyping for hobbyists and professionals alike. The device's robustness and reliability are ensured by ON Semiconductor's commitment to high-quality manufacturing processes.

Overall, the MC74HC640AN is a versatile and reliable choice for designers looking for a high-performance octal transceiver with inverting capabilities. Its compatibility with various logic levels, low power consumption, and high noise immunity make it a suitable component for a wide array of electronic applications.
