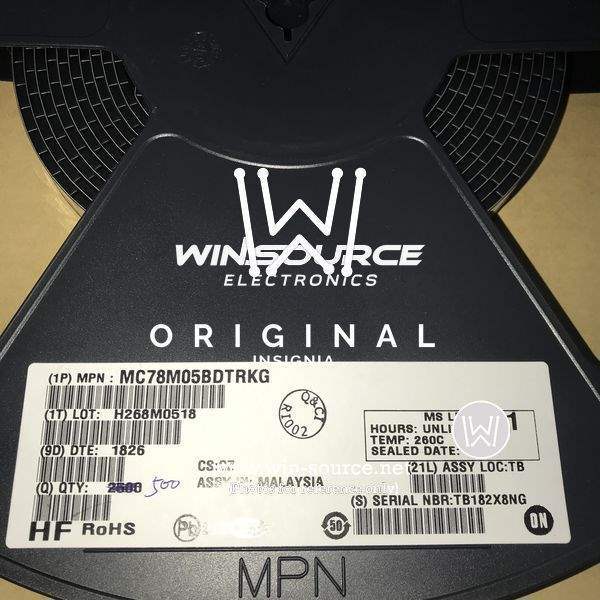

The MC78M05BDTRK from ON Semiconductor is a fixed linear voltage regulator integrated circuit, designed to offer a stable 5V output from a wider input voltage range. This component is part of the MC78 series and is ideal for a variety of electronic applications that require a regulated power supply.

Key Features

• Output Voltage: Fixed output voltage of 5V, which is suitable for most logic circuits and standard digital components.
• Output Current: Capable of delivering up to 500mA of output current, making it suitable for a range of moderate power requirements.
• Package: Available in a DPAK (TO-252) surface-mount package, which is designed for optimal heat dissipation and space-saving on PCBs.
• Thermal Overload Protection: The device includes built-in thermal overload protection, which safeguards the regulator from damage due to excessive heat and power dissipation.
• Short Circuit Protection: Integrated short circuit protection ensures the device and your application are protected from potential damage caused by short circuits.
• No External Components Required: The MC78M05BDTRK is designed to operate without the need for external components, though capacitors can be added to enhance transient response.

Applications

The MC78M05BDTRK is versatile and can be used in a wide array of applications, including:

• Consumer Electronics
• Computer Systems
• Telecommunication Equipment
• Instrumentation
• Automotive Systems

Quality and Reliability

ON Semiconductor is known for its commitment to quality and reliability. The MC78M05BDTRK is built to meet the stringent requirements of various industries, ensuring performance and durability for your product's lifespan.

Environmental Compliance

This product is compliant with RoHS directives, reflecting ON Semiconductor's dedication to environmental responsibility and the reduction of hazardous substances in electronic components.

Overall, the MC78M05BDTRK is a reliable choice for designers seeking a robust voltage regulation solution with a fixed output, thermal protection, and short circuit protection, all within a compact package.
