The MJL21193 is a high-power, high-performance transistor from ON Semiconductor, designed for exceptional quality and reliability in demanding applications. This silicon power Bipolar Junction Transistor (BJT) is part of the PowerBase™ series and is specifically engineered to deliver superior power amplification in audio systems, power supplies, and a variety of other high-power switching applications.

Key Features

• High Current Handling: The MJL21193 is capable of handling continuous collector currents up to 16 A, making it suitable for high-power circuits.
• High Voltage Tolerance: With a collector-emitter voltage (VCEO) of 250V, it can withstand significant voltage levels without breakdown.
• High Power Dissipation: Featuring a power dissipation of 200W, this transistor can manage the thermal challenges associated with high-power applications.
• High Frequency Response: Its transition frequency (fT) of 4 MHz allows for efficient operation in audio frequency ranges and other applications requiring fast switching.
• Complementary PNP Type: The MJL21193, an NPN transistor, is complemented by the MJL21194, a PNP transistor, allowing for use in push-pull and other complementary configurations.

Applications

The MJL21193 transistor is ideal for a variety of applications, including:

• High-fidelity audio amplifiers
• Professional audio systems
• Linear and switching power supplies
• Motor control circuits
• DC-DC converters

Quality and Reliability

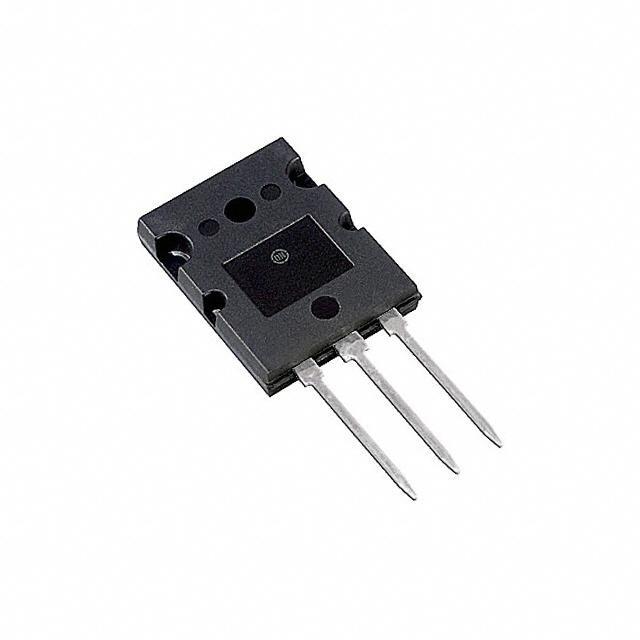

ON Semiconductor is committed to delivering products that meet the highest standards of quality and reliability. The MJL21193 is manufactured with state-of-the-art technology, ensuring its performance under harsh conditions and in extended temperature ranges. It comes encapsulated in a TO-264 package, which provides excellent thermal conduction and robustness, making it a reliable choice for professional-grade applications.

Environmental Compliance

The MJL21193 transistor is compliant with RoHS (Restriction of Hazardous Substances) directives, reflecting ON Semiconductor's dedication to environmental responsibility. By choosing the MJL21193, customers can be assured of a product that not only performs exceptionally but also aligns with global efforts to reduce the environmental impact of electronic components.
