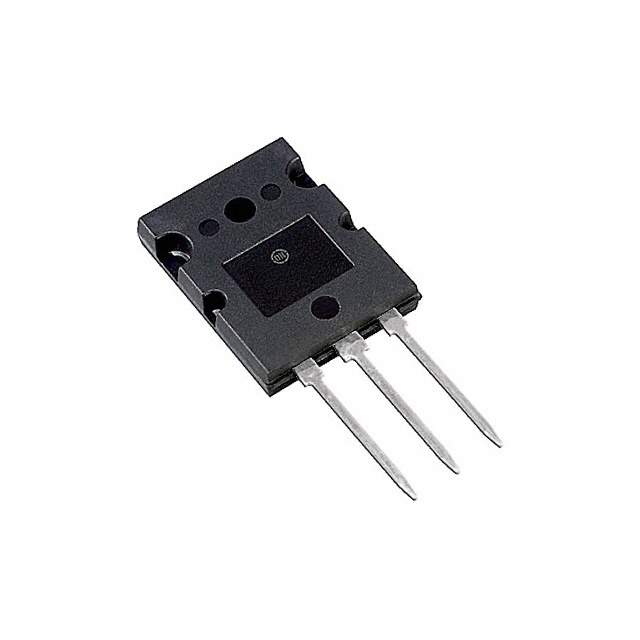

The ON Semiconductor MJL4302AG is a high-performance power transistor designed for exceptional audio fidelity and power efficiency. This component is part of a well-respected line of audio power transistors that are widely recognized for their reliability and superior sound reproduction capabilities.

Key Features

• High-Fidelity Audio: The MJL4302AG is engineered to deliver high-quality audio performance, making it an ideal choice for high-end audio amplification systems.
• High Power Handling: With its ability to handle significant power levels, this transistor can be used in demanding applications that require robust power delivery.
• Complementary NPN Type: Designed to work in conjunction with its NPN counterpart, the MJL4281AG, for a balanced and efficient push-pull amplifier design.
• Wide Safe Operating Area (SOA): The device features a wide SOA, ensuring reliable operation even under varying load conditions and power cycles.
• Low Distortion: The transistor is optimized to produce low distortion, which is critical for maintaining the integrity of the audio signal.

Applications

The MJL4302AG is suitable for a variety of audio applications, including:

• High-end stereo amplifiers
• Professional audio equipment
• Home theater systems
• Active speaker systems

Technical Specifications

Parameter Value Collector-Emitter Voltage (Vceo) 350 V Collector Current (Ic) 15 A Power Dissipation (Pd) 200 W Configuration Single Package TO-264

The MJL4302AG transistor is a testament to ON Semiconductor's commitment to providing components that enhance the performance and efficiency of audio systems. With its robust design and high-quality audio output, the MJL4302AG is the go-to choice for audiophiles and professional sound engineers alike.
