Product Overview: MMBT2222AWT3G from ON Semiconductor

The MMBT2222AWT3G is a high-performance NPN bipolar junction transistor (BJT) from ON Semiconductor, designed to deliver efficient current amplification and switching capabilities. This versatile transistor is a must-have component for a wide range of electronic applications, from consumer electronics to industrial control systems.

Key Features

• Type: NPN

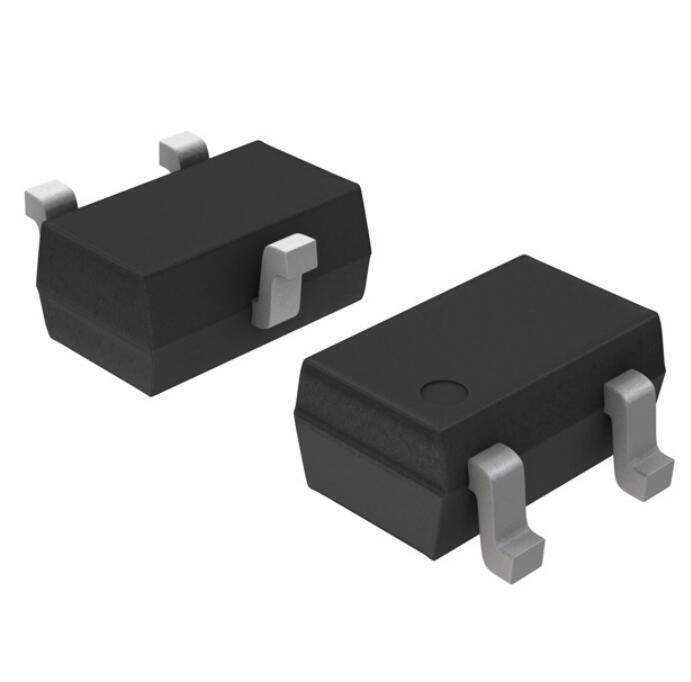

• Package: SOT-323
• Collector-Emitter Voltage (VCEO): 40V
• Collector-Base Voltage (VCBO): 75V
• Emitter-Base Voltage (VEBO): 6V
• Collector Current (IC): 600mA
• Power Dissipation (Pd): 225mW
• DC Current Gain (hFE): 100 to 300 at 10mA VCE
• High Transition Frequency (fT): 250MHz

Performance and Quality

The MMBT2222AWT3G is manufactured by ON Semiconductor, a leader in the semiconductor industry, ensuring high-quality performance and reliability. The device operates within a wide range of ambient temperatures, making it suitable for diverse environmental conditions. With its SOT-323 surface-mount package, it is not only space-saving but also facilitates efficient thermal management and rapid heat dissipation.

Applications

Due to its compact size and robust performance characteristics, the MMBT2222AWT3G is ideal for a variety of applications, including:

• Signal amplification
• Switching loads
• Linear amplification
• Driver stages in hi-fi amplifiers and television circuits
• Voltage regulation circuits
• Protection circuits

Environmental and Regulatory Compliance

The MMBT2222AWT3G complies with multiple environmental standards, ensuring that it meets the requirements for a greener and more sustainable future. It is RoHS compliant, which means it is free from hazardous substances like lead, mercury, and cadmium. This commitment to environmental stewardship makes the MMBT2222AWT3G an excellent choice for designers and manufacturers looking to create eco-friendly products.

Whether you're designing a simple circuit for a hobby project or developing sophisticated electronics for commercial products, the MMBT2222AWT3G from ON Semiconductor provides the performance and reliability you need in a compact, surface-mount NPN transistor.
