ON Semiconductor MPSA20 NPN Transistor

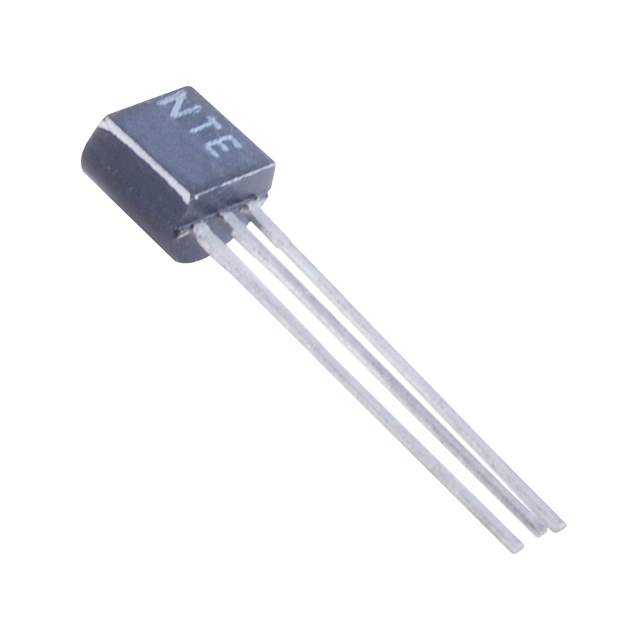

The MPSA20 from ON Semiconductor is a versatile NPN bipolar junction transistor (BJT) designed for general-purpose amplification and switching applications. This transistor is well-suited for a broad range of electronic circuits, offering reliable performance in a compact TO-92 package, which is both easy to handle and implement in various designs.

The MPSA20 features a collector-emitter voltage (V<sub>CEO) of 40V, a collector-base voltage (V<sub>CBO) of 60V, and an emitter-base voltage (V<sub>EBO) of 6.0V. With a continuous collector current (I<sub>C) of up to 100 mA, this transistor can handle moderate levels of current, making it suitable for driving small loads. Additionally, its power dissipation is rated at 625 mW, allowing it to manage a reasonable amount of power for its size.

The device boasts a DC current gain (h<sub>FE) range of 100 to 300, providing sufficient amplification for various signal processing tasks. The MPSA20's low saturation voltage and fast switching speeds are integral for efficient operation in circuits requiring quick transitions, such as digital logic or pulse applications.

ON Semiconductor has designed the MPSA20 with a focus on reliability and performance consistency, ensuring that it meets the needs of both commercial and industrial applications. The transistor is also characterized by its low noise figure, which is essential for audio amplifiers and other sensitive signal processing circuits where clarity and fidelity are crucial.

For designers and hobbyists alike, the MPSA20 is a practical choice due to its ease of integration into existing circuits, thanks to its industry-standard TO-92 package. It is also recognized for its robustness and longevity, withstanding the test of time even under demanding conditions.

In summary, the ON Semiconductor MPSA20 is a high-quality, general-purpose NPN transistor that offers a balanced blend of electrical characteristics suitable for a wide array of applications. Whether you're working on a simple DIY project or a complex electronic system, the MPSA20 is a reliable component that can help you achieve your design goals with efficiency and precision.
