The MSRF1560G is a state-of-the-art Schottky Rectifier designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This rectifier is specifically engineered to meet the high demands of modern electronic applications, providing a perfect blend of low forward voltage drop and high current capability.

Key Features

• High Current Capacity: With a forward continuous current of 15 A, the MSRF1560G can handle significant current, making it suitable for high-power applications.
• Low Forward Voltage Drop: The low forward voltage drop reduces power loss and improves efficiency, which is crucial for energy-sensitive designs.
• High Surge Capability: This device can withstand high surge currents, offering robust performance during transient conditions.
• Guard Ring Die Construction: The guard ring design provides enhanced reliability and stability by protecting against voltage spikes and transients.
• High Junction Temperature: With an operating junction temperature range of -65°C to 175°C, the MSRF1560G is designed to perform reliably in extreme temperature conditions.

Applications

The versatility of the MSRF1560G allows it to be used in a wide range of applications, including:

• Switching power supplies
• Converters
• Free-wheeling diodes
• Reverse battery protection
• Automotive applications
• High-frequency circuits

Package and Quality

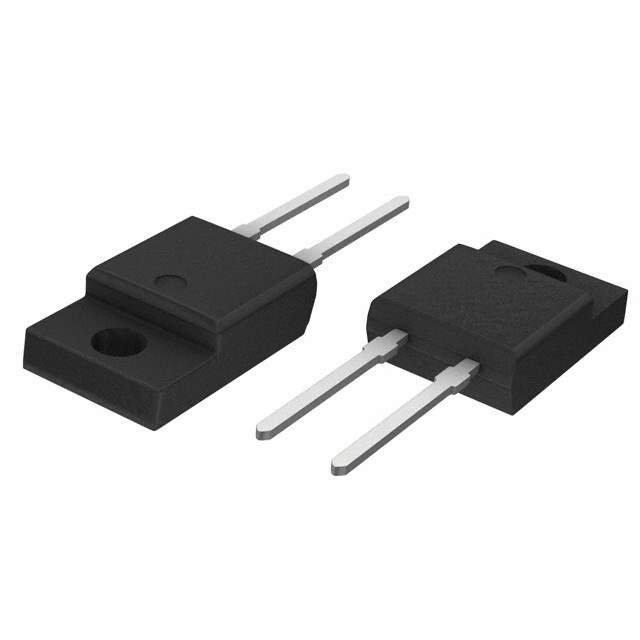

The MSRF1560G comes in a TO-220 full-pak package, which is known for its excellent thermal performance and mechanical robustness. This package is also lead-free and RoHS compliant, reflecting ON Semiconductor's commitment to environmental sustainability.

Conclusion

With its exceptional features and reliable performance, the MSRF1560G from ON Semiconductor is an excellent choice for designers looking to enhance the efficiency and durability of their power management systems. Whether for industrial, automotive, or consumer applications, the MSRF1560G delivers the quality and performance expected from a leading semiconductor provider.
