ON Semiconductor NC7WV04L6X: Ultra High-Speed Dual Inverter

The NC7WV04L6X from ON Semiconductor is a high-performance, dual inverter integrated circuit designed for applications requiring ultra high-speed logic operations. This tiny yet powerful component is part of ON Semiconductor's extensive range of logic devices and is specifically engineered to meet the demands of today's advanced digital systems.

The device features two independent inverters, making it a versatile choice for a variety of logic inversion tasks. It is fabricated with advanced silicon gate CMOS technology which ensures that the NC7WV04L6X achieves exceptional speed performance while maintaining low power consumption. This combination of speed and efficiency makes it ideal for portable and battery-powered applications where power conservation is critical.

Key Features:

• Operating Voltage Range: The NC7WV04L6X operates at a voltage range of 1.65V to 5.5V, allowing for flexible integration into mixed-voltage systems.
• High-Speed Operation: With propagation delay times significantly lower than traditional CMOS inverters, this device ensures rapid signal processing for high-speed applications.
• Power Down High-Impedance Inputs: The inputs include a power down high-impedance feature that minimizes power consumption when the device is not in active use.
• Over-Voltage Tolerance: Inputs can tolerate voltages up to 5.5V, independent of the supply voltage, providing additional protection against voltage spikes.

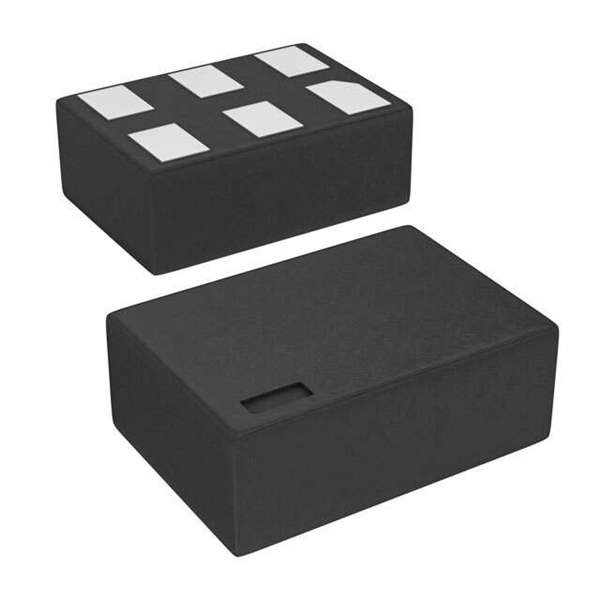

• Ultra-Small MicroPak™ Packaging: The NC7WV04L6X comes in ultra-small MicroPak™ packaging, which is optimal for space-constrained applications.

Applications:

The ON Semiconductor NC7WV04L6X is suited for a broad range of applications, including but not limited to:

• Portable and handheld devices
• High-speed data processing systems
• Telecommunications infrastructure
• Servers and networking equipment
• Consumer electronics

In summary, the NC7WV04L6X dual inverter from ON Semiconductor offers designers a high-speed, low-power solution for a wide array of electronic products. Its robust design and versatile features ensure reliable performance in the most demanding situations.
