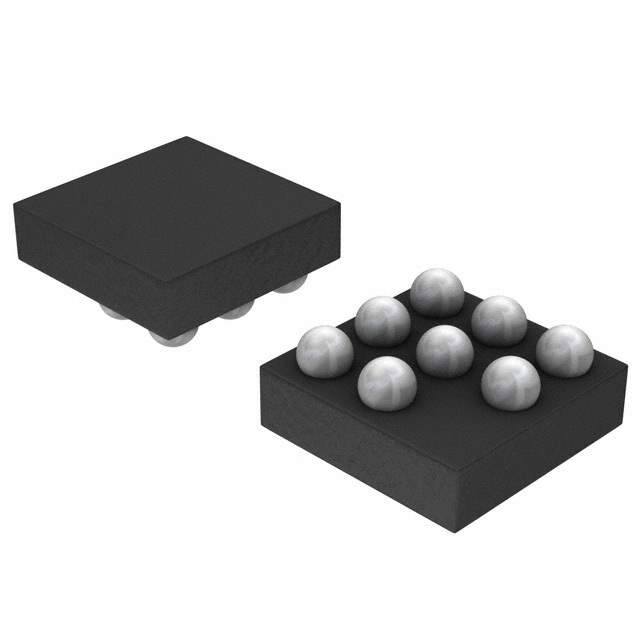

ON Semiconductor NCP1523BFCT2G: Power Management IC

The NCP1523BFCT2G is a high-performance, fixed-frequency, step-down integrated circuit (IC) from ON Semiconductor, designed for portable applications. This compact and efficient power management IC is ideal for converting battery voltage into a lower, regulated voltage essential for powering various electronic devices such as smartphones, tablets, and other handheld gadgets.

Main Features

• Adjustable Output Voltage: The NCP1523BFCT2G allows users to set the output voltage to a desired level, ensuring compatibility with a wide range of devices and applications.
• High Efficiency: With its high switching frequency and low quiescent current, it operates with high efficiency, which is crucial for extending battery life in portable devices.
• Small Footprint: The IC comes in a compact 5-pin TSOP package, making it suitable for space-constrained applications.
• Thermal Shutdown: It includes a thermal shutdown feature that protects the device from overheating, enhancing system reliability.
• Current Mode Operation: The current mode control provides excellent transient response, reducing output voltage deviations in response to load changes.

Applications

The NCP1523BFCT2G is versatile and can be used in a variety of applications, including:

• Portable Media Players
• Handheld Devices
• Wireless and RF Devices
• Personal Digital Assistants (PDAs)

Technical Specifications

Some of the key technical specifications of the NCP1523BFCT2G include:

• Input Voltage Range: 2.7V to 5.5V
• Output Voltage: Adjustable
• Switching Frequency: Up to 3 MHz
• Output Current: Up to 600 mA
• Package Type: 5-Pin TSOP

ON Semiconductor's NCP1523BFCT2G is a robust solution for designers looking to integrate a reliable power management system into their portable applications. Its high efficiency, adjustable output voltage, and small form factor make it an excellent choice for modern electronic devices that demand compact and energy-efficient power solutions.
