ON Semiconductor NCP6121S52MNR2G Overview

The NCP6121S52MNR2G is a high-performance, multi-phase PWM controller designed by ON Semiconductor, catering to the demanding requirements of core power supply systems in high-performance CPUs, GPUs, and memory devices. This sophisticated component is engineered to provide precise voltage regulation, enhanced power efficiency, and robust power management, making it an ideal solution for advanced computing and gaming applications, as well as high-end servers and networking equipment.

Key Features

• Multi-Phase Operation: The controller supports multi-phase operation, which significantly improves thermal performance and reduces the output voltage ripple, providing stable power to sensitive electronic components.
• High-Efficiency: Designed with efficiency in mind, the NCP6121S52MNR2G ensures minimal power loss and heat generation, which is crucial for maintaining the longevity and reliability of high-performance systems.
• Digital Programmability: The device offers programmable features such as voltage identification (VID), enabling precise control over the output voltage for dynamic voltage scaling.
• Advanced Protection: It includes a comprehensive suite of protection features, such as over-voltage, under-voltage, over-current, and over-temperature protections, safeguarding the system against various fault conditions.

Applications

The NCP6121S52MNR2G is well-suited for a variety of applications that require robust power delivery and fine voltage control, including:

• High-Performance Computing (HPC) Systems
• Gaming and Enthusiast PCs
• Workstations
• Graphics Processing Units (GPUs)
• Server Motherboards
• Networking and Telecommunication Equipment

Technical Specifications

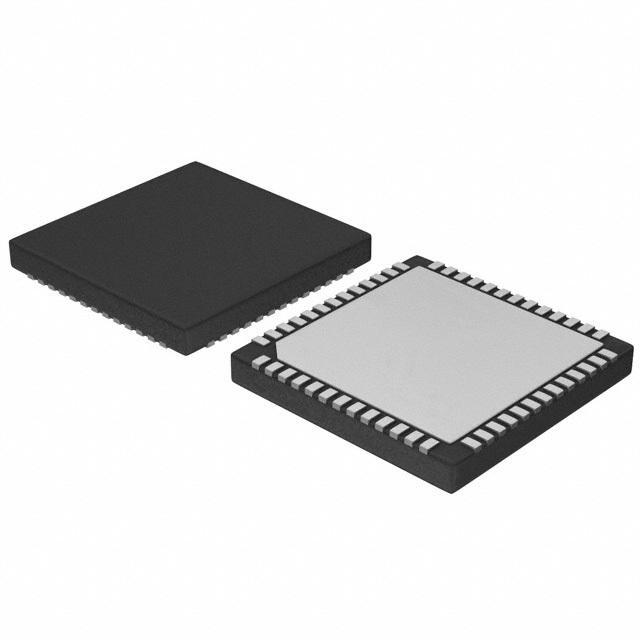

The controller operates with an input voltage range suitable for modern computing systems and supports a wide range of output voltages to accommodate various processor requirements. It comes in a space-saving package that is designed to fit into compact PCB layouts, ensuring that it can be integrated into systems where space is at a premium.

For detailed technical specifications, datasheets, and support documentation, interested parties should visit ON Semiconductor's official website or contact their local ON Semiconductor sales office.
