The NCV7694MW0R2G is a cutting-edge automotive-grade LED driver from ON Semiconductor, designed to deliver precise current regulation for automotive rear lighting applications. This highly integrated device is tailored for the demanding requirements of vehicle manufacturers, ensuring reliable and consistent performance in a variety of lighting conditions.

Key Features

• Current Regulation: The device provides accurate and stable current regulation for LED strings, which is crucial for maintaining consistent brightness and color over time.
• Wide Input Voltage Range: With an input voltage range that accommodates the fluctuations in a vehicle's electrical system, the NCV7694MW0R2G ensures smooth operation regardless of the battery condition.
• Thermal Protection: The built-in thermal shutdown feature protects the device and connected LEDs from overheating, enhancing the longevity and safety of the lighting system.
• Diagnostic Functions: Advanced diagnostic capabilities allow for real-time monitoring of the LED driver's status, enabling quick identification and resolution of issues.
• EMC Performance: The device is designed to meet stringent electromagnetic compatibility (EMC) requirements, reducing interference with other electronic systems in the vehicle.

Applications

The NCV7694MW0R2G is ideal for a range of automotive lighting applications, including:

• Tail lights
• Brake lights
• Turn signals
• Daytime running lights (DRL)

Quality and Reliability

As an AEC-Q100 qualified device, the NCV7694MW0R2G meets the highest quality standards for automotive electronics. Its robust design ensures performance in harsh automotive environments, characterized by vibration, temperature extremes, and transient voltage conditions.

Package and Availability

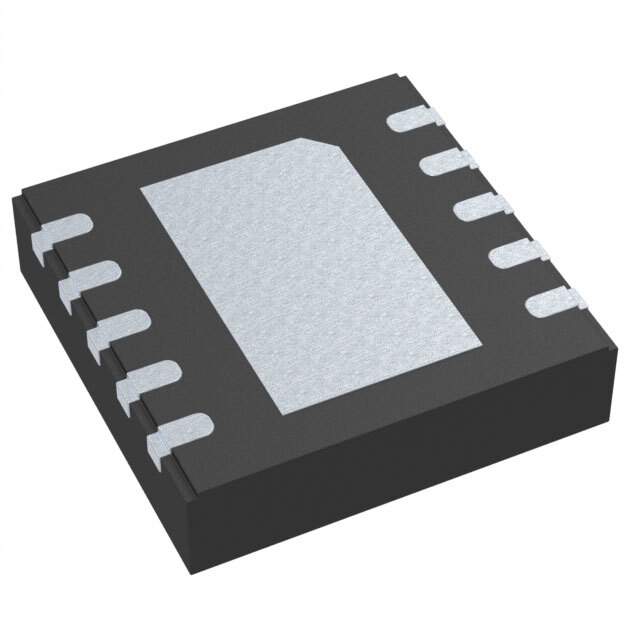

ON Semiconductor offers the NCV7694MW0R2G in a compact, surface-mount package, making it suitable for space-constrained applications. The device is available for order, with options for bulk or tape and reel packaging to accommodate various production requirements.
