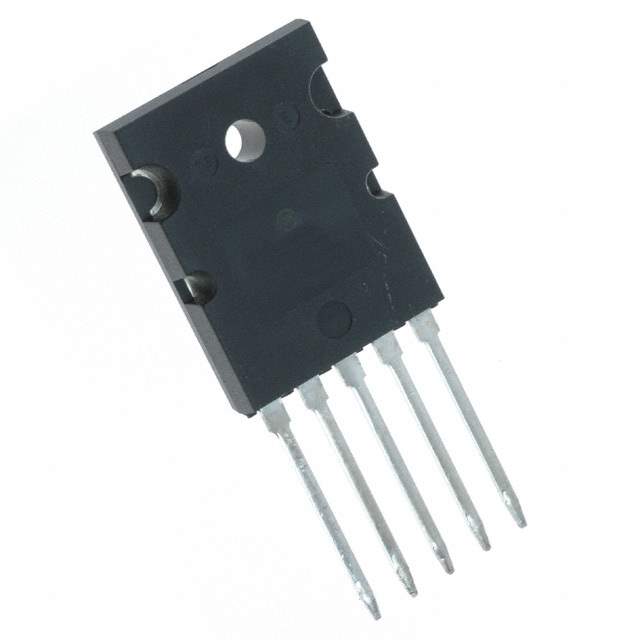

ON Semiconductor NJL0302DG Power Transistor

The NJL0302DG from ON Semiconductor is a high-performance PNP power transistor designed to deliver efficiency and reliability for a wide range of applications. This bipolar junction transistor (BJT) is a state-of-the-art component that is well-suited for linear and switching applications, making it a versatile choice for designers and engineers.

Key Features:

• High Current Capacity: The NJL0302DG is capable of handling continuous collector currents up to several amperes, which allows it to drive larger loads with ease.
• Low Saturation Voltage: This transistor is engineered to have a low V<sub>CE(sat) which minimizes on-state power dissipation and improves overall efficiency.
• Complementary NPN Type: For applications requiring push-pull or complementary configurations, the NJL0302DG has a complementary NPN partner, allowing for flexibility in circuit design.
• High Power Dissipation: With a robust thermal design, this device can dissipate significant amounts of power without overheating, making it suitable for high-power applications.
• TO-3P Package: Enclosed in a TO-3P package, the NJL0302DG offers excellent heat dissipation capabilities and is easy to mount on a heatsink for thermal management.

Applications:

The NJL0302DG is ideal for a variety of applications, including but not limited to:

• Audio Amplifiers
• Power Management Systems
• DC-DC Converters
• Motor Control Circuits
• Switching Regulators

Reliability and Performance:

ON Semiconductor's commitment to quality ensures that the NJL0302DG transistor meets the highest standards of reliability and performance. It is designed to offer not only a long operational lifespan but also consistent performance under varying conditions. Whether for industrial, commercial, or consumer electronics, the NJL0302DG is a solid choice for designers looking for a reliable PNP power transistor.

For detailed specifications, application notes, and additional resources, please refer to the official ON Semiconductor datasheets and product documentation.
