The ON Semiconductor NL17SZ17DFT2G is a high-performance, single non-inverting buffer with an open-drain output, designed to meet the needs of high-speed and low-power applications. This versatile component is a part of ON Semiconductor's extensive range of logic devices, known for their reliability and efficiency.

Key Features:

• High Speed: The NL17SZ17DFT2G operates at a voltage range of 1.65V to 5.5V, allowing for compatibility with a wide array of modern digital systems. Its high-speed performance is characterized by a propagation delay (tPD) of only 4.5ns at 5V, making it suitable for fast signal processing applications.
• Low Power Consumption: This device is optimized for low power consumption, which is critical for battery-powered and energy-saving applications. It features a low static power supply current, contributing to overall power efficiency in the systems it is integrated into.
• Open-Drain Output: The open-drain output configuration allows for the direct driving of relatively high-current loads, and it can be connected to higher voltages than VCC. This makes the NL17SZ17DFT2G ideal for interfacing with different logic levels or driving LEDs and relays.

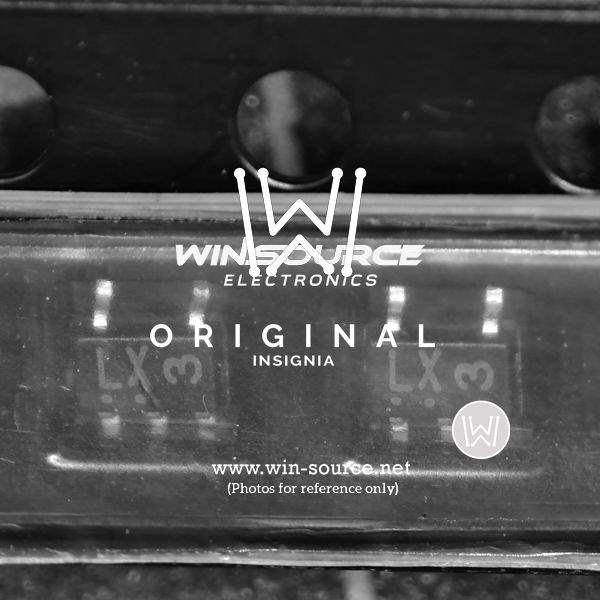

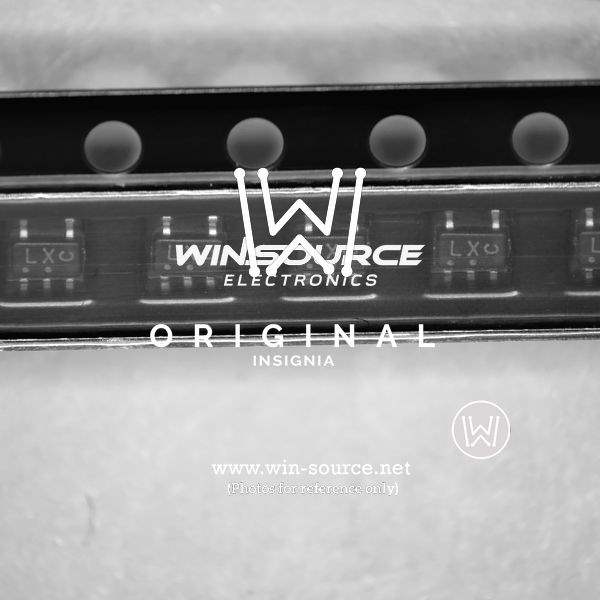

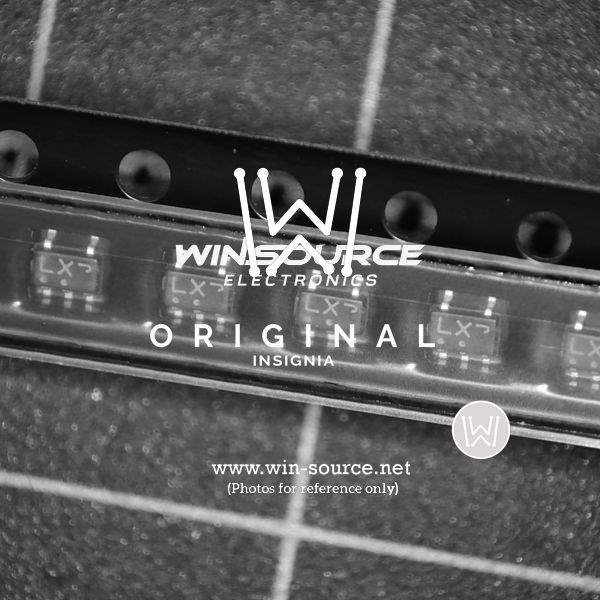

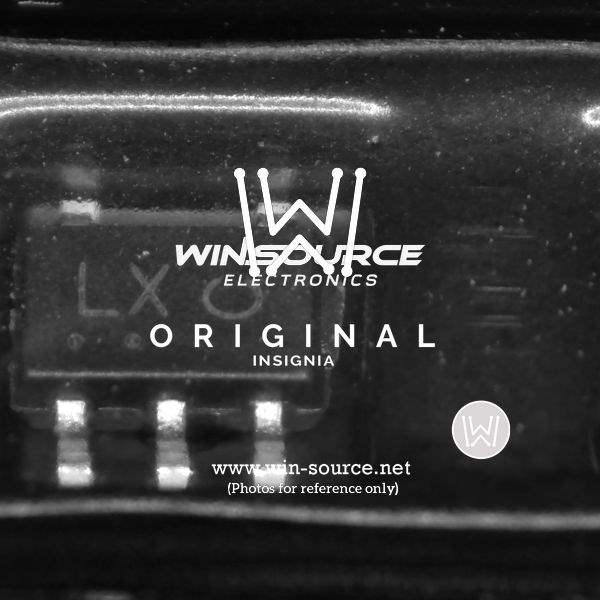

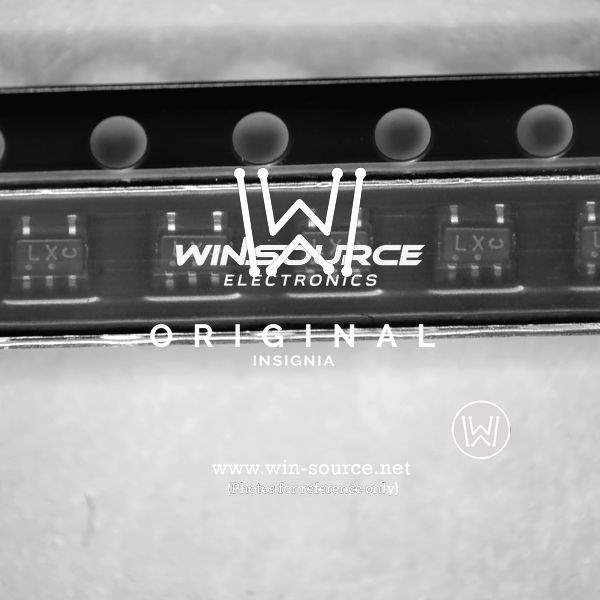

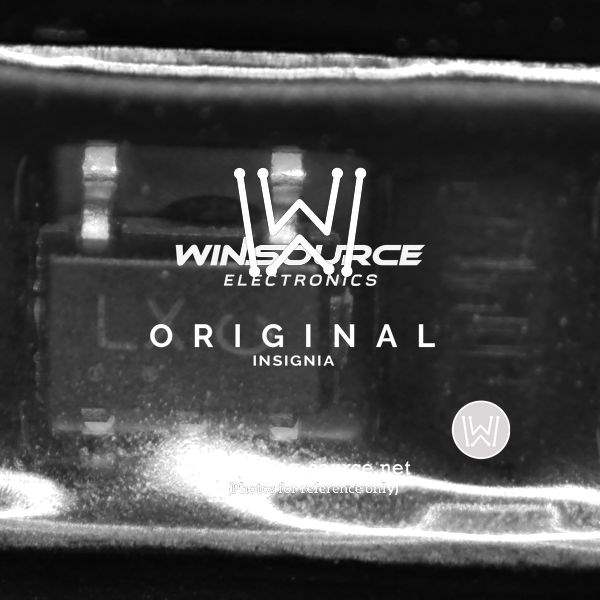

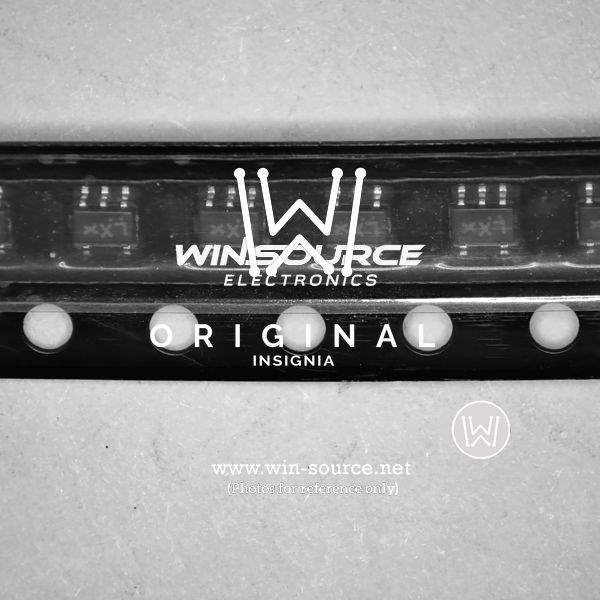

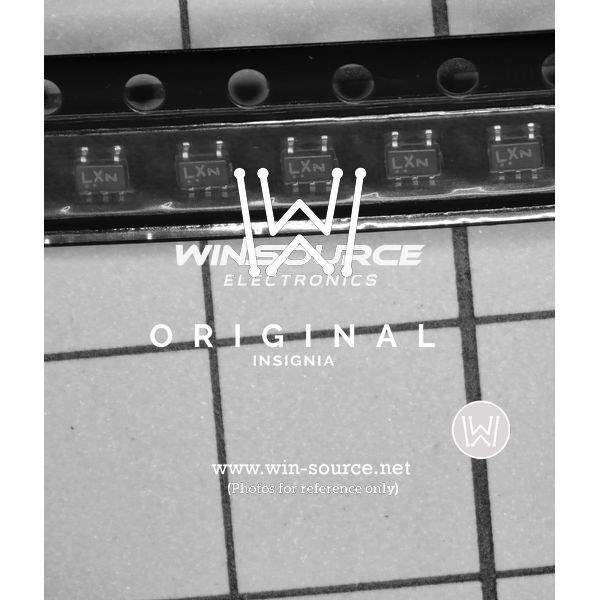

• Compact Packaging: Housed in a space-saving SC-88A (SOT-353) package, this buffer is suitable for high-density mounting, thus saving precious board space in compact electronic assemblies.

Applications:

The NL17SZ17DFT2G is used in a variety of applications, including but not limited to:

• Logic level shifting
• Line driving
• Signal buffering
• Interfacing for various digital components

Quality and Reliability:

ON Semiconductor is committed to providing high-quality products, and the NL17SZ17DFT2G is no exception. It is manufactured to stringent quality standards, ensuring reliability and performance in diverse operating conditions. Whether you are designing consumer electronics, industrial control systems, or automotive applications, this buffer offers a robust solution for your digital logic needs.
